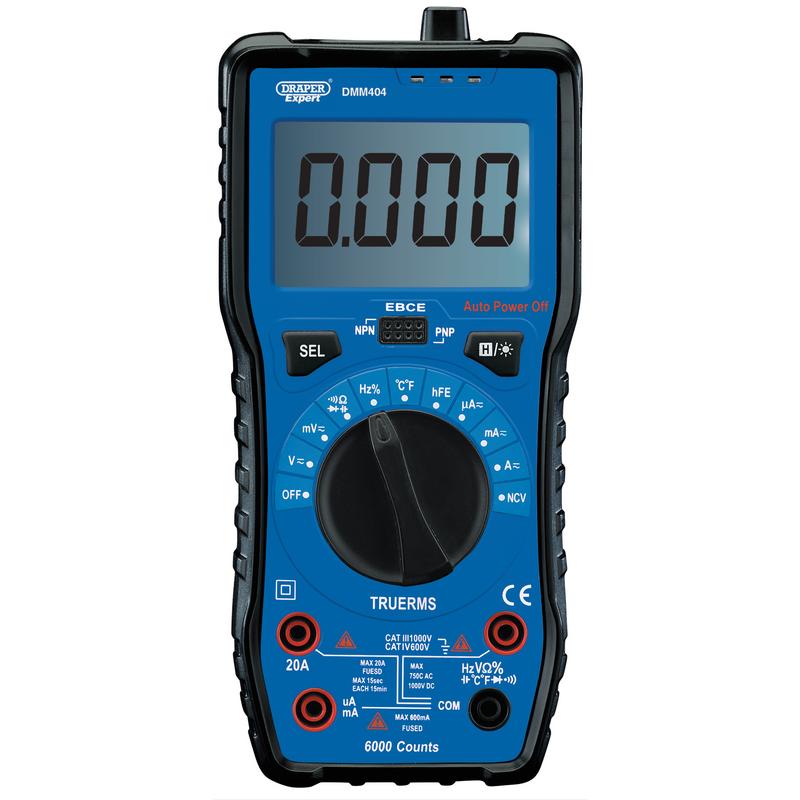

Draper Expert 92433 Auto & Manual Ranging Digital Multimeter
Draper Expert 92433 Auto & Manual Ranging Digital Multimeter
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Draper |
|---|---|
| SKU | DRA92433 |
| MPN | 92433 |
| Barcode | 5010559924332 |
| Weight | 0.55 KGS |
| Dimensions | 20.00 × 7.00 × 21.60 cm (W × H × D) |
| Warranty | 12 months guarantee, in addition to your statutory rights. |
Description
Auto - ranging CAT IV multimeter. Equipped with a high - performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power - off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with a carry case.
- Large LCD backlit display screen
- Supplied with probes, battery, bump cover and storage case
- Auto-ranging CAT IV multimeter
- High-performance MCU processor
- Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions
- NCV (Non-contact voltage) sensor
- Inspection light
- An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles
- Supplied with a carry case
Specifications
| AC Current | 60uA/600uA/6000uA/60mA/600mA/20A |
|---|---|
| AC Voltage | 600mV/6V/60V/600V/750V |
| Automatic Power Off | Yes |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF |
| DC Current | 60uA/600uA/6000uA/60mA/600mA/20A |
| DC Voltage | 600mV/6V/60V/600V/0.1V/1000V |
| Diode on/off Test | Yes |
| Dimensions | 190mm x 90mm x 50mm |
| Duty Ratio | Yes |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| Resistance (Ohms) | 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Symbol Unit Data Hold | Yes |
| Temperature Range | -20°C - 1000°C/-4°F - 1832°F |
| Weight | 380g (approx.) |
| Battery Type | 1 x PP3 9V (not supplied) |
| Country of Origin | China |
| Commodity Code | 9030310090000 |
