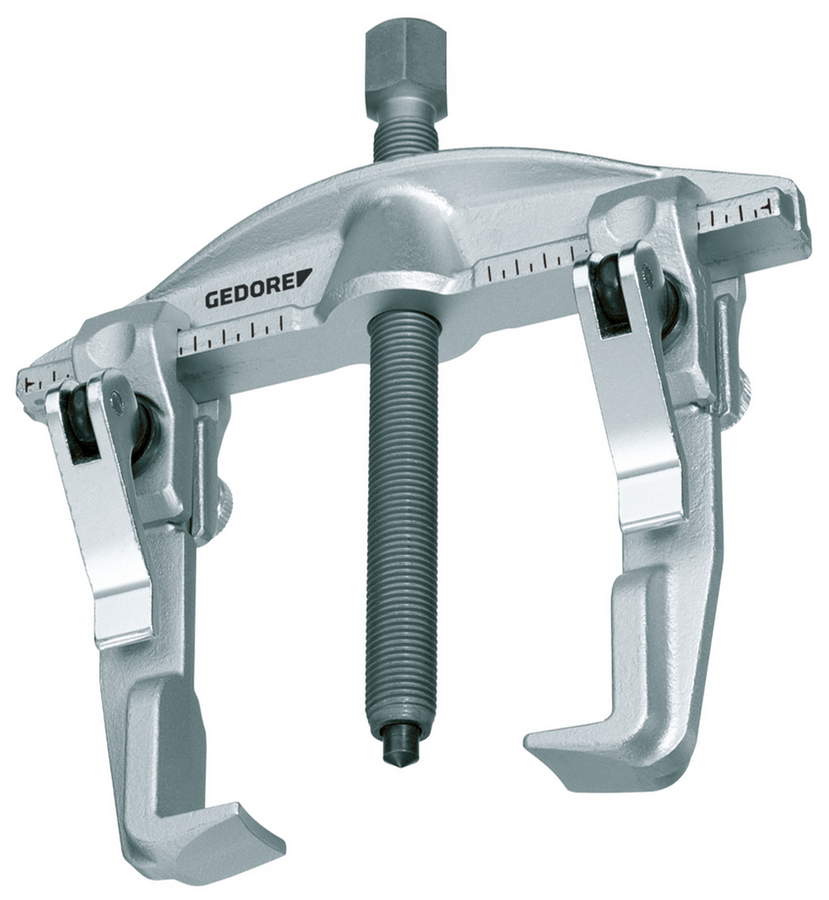

Product Overview
- For the safe and quick removal of pulleys, wheels, ball bearings, etc.
- Strong, ergonomically shaped cross beam with bending moment reinforcement
- Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- The quick-action adjustment feature supports the energy-saving and fast operation
- Exchangeable spindle tip (ball or tip)
Technical Specifications
| Usable clamping reach [mm] | 100 mm |
|---|---|
| Spindle thread size | M14x1,5x140mm |
| Clamping width a2 (min.) internal pulling [mm] | 70 mm |
| Clamping width a2 (max.) internal pulling [mm] | 170 mm |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 12 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 3 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 1.35 kg |
| Hook can be moved parallel | Yes |
| Quick release lever available | Yes |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 130 mm |
| Hydraulic spindle optional | - |
| Use | For removing drive pulleys, wheels, ball bearings etc. |
| Type | 2-arm |
| Graduation | Yes |
| Number of hooks | 2 |
| Load of the entire puller (max.) [t] | 3 t |
| Spindle Thrust piece type | Kugel & Spitze |
| Spindle Thread length (usable) [mm]. | 140 mm |
| Spindle Surface coating | Nitro-carburated |
| Spindle Width across flats | 17 mm |
| Exchangeable spindle tip | Yes |
| Spindle holder | M14x1,5mm |
