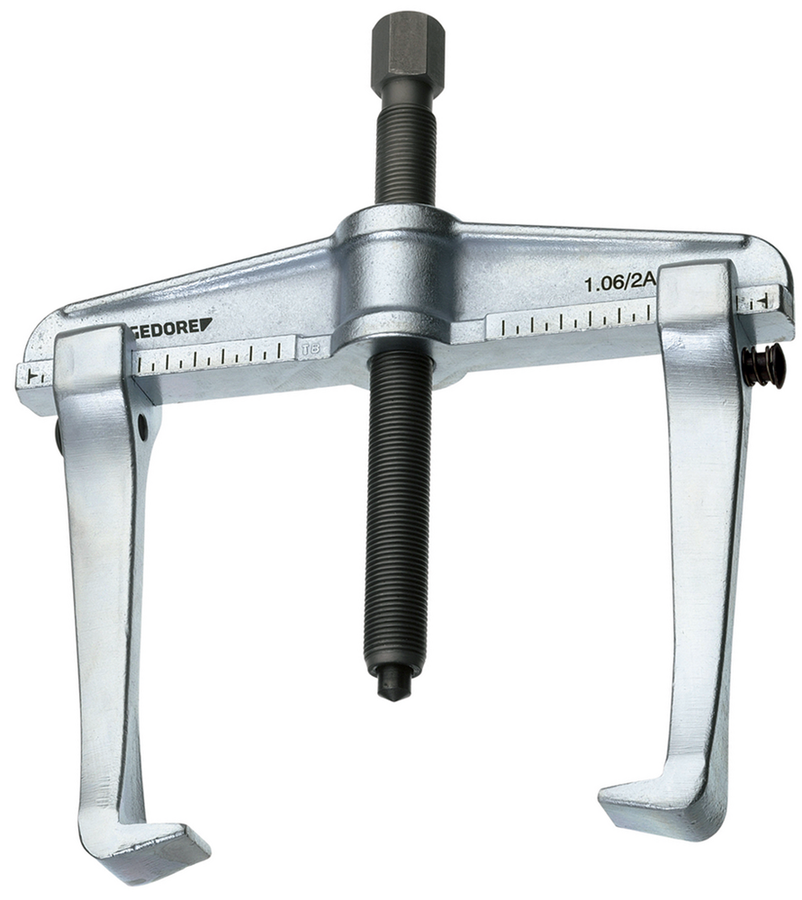

Product Overview
- Strong drop forged pattern
- Puller hook forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
Technical Specifications
| Usable clamping reach [mm] | 150 mm |
|---|---|
| Spindle thread size | G 1/2 x 210 |
| Clamping width a2 (min.) internal pulling [mm] | 80 mm |
| Clamping width a2 (max.) internal pulling [mm] | 220 mm |
| Width of hooked foot [mm] | 30 mm |
| Usable depth of hooked foot d2 [mm] | 24 mm |
| Thickness of hooked foot at tip | 3.5 mm |
| Width across flats [mm] | 22 mm |
| Tractive force (max.) [t] | 5.0 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 2.8 kg |
| Hook brake available | Yes |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 170 mm |
| Hydraulic spindle optional | 1.06/HSP1 |
| Type | 2-arm |
| Graduation | Yes |
| Number of hooks | 2 |
| Spindle Thrust piece type | Spitze |
| Spindle Surface coating | Nitro-carburated |
