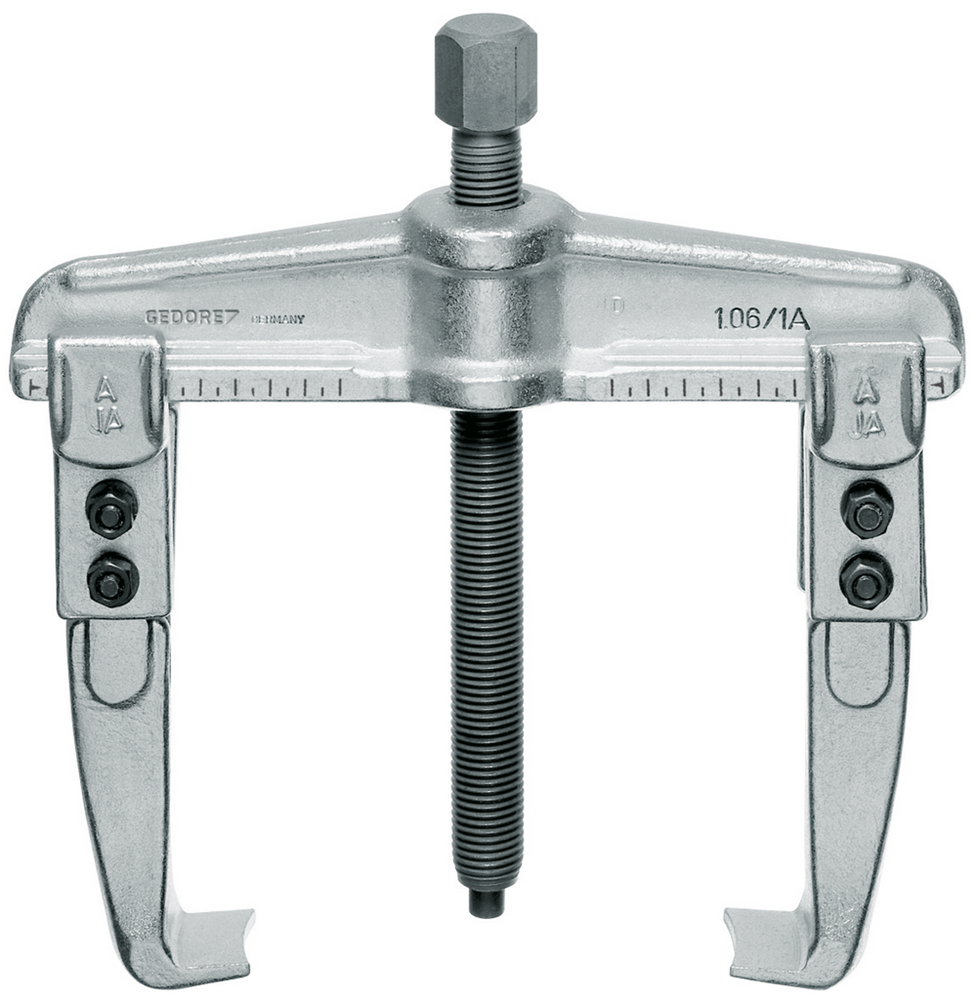

Product Overview
- Proven model for safe and fast removal of discs, wheels, ball bearings etc.
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Technical Specifications
| Usable clamping reach [mm] | 200 mm |
|---|---|
| Spindle thread size | G 1 x 310 |
| Clamping width a2 (min.) internal pulling [mm] | 185 mm |
| Clamping width a2 (max.) internal pulling [mm] | 600 mm |
| Width of hooked foot [mm] | 36 mm |
| Usable depth of hooked foot d2 [mm] | 28 mm |
| Thickness of hooked foot at tip | 6.5 mm |
| Width across flats [mm] | 36 mm |
| Tractive force (max.) [t] | 10 |
| Number of arms | 2 |
| Net weight [kg] | 13.7 kg |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 520 mm |
| Hydraulic spindle optional | 1.06/HSP3 |
| Total length [mm] | 600 mm |
| Total width [mm] | 280 mm |
| Total height [mm] | 90 mm |
