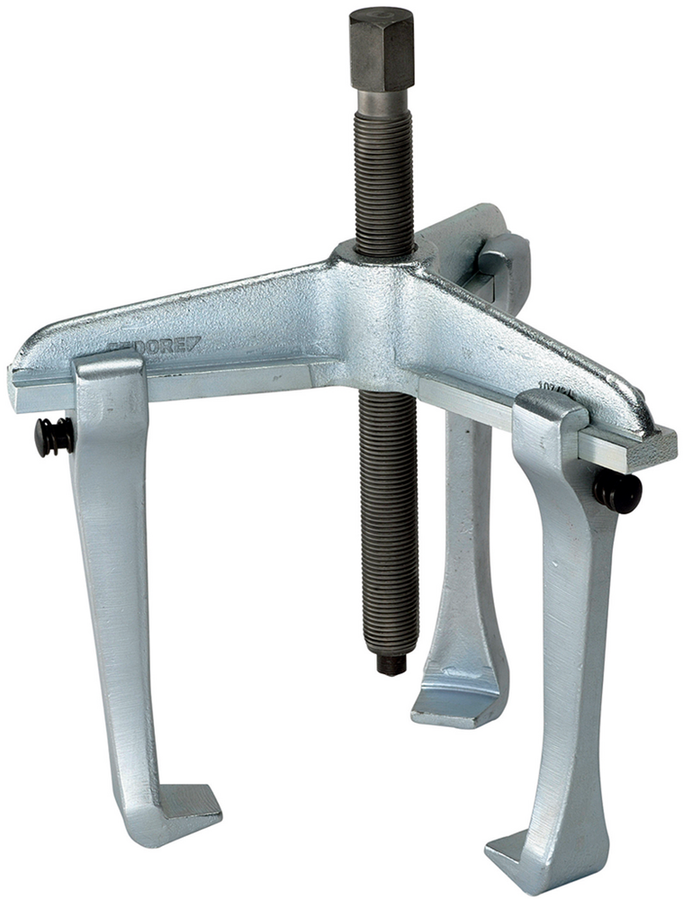

Gedore 1957953 1.07/1A1-B Universal puller, 3-arm, all-steel hook, 130x100mm
Gedore 1957953 1.07/1A1-B Universal puller, 3-arm, all-steel hook, 130x100mm
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Gedore |
|---|---|
| SKU | GED1957953 |
| MPN | 1957953 |
| Barcode | 4036976121599 |
| Weight | 1.40 KGS |
| Dimensions | 16.50 × 3.50 × 18.00 cm (W × H × D) |
Description
- Even load distribution over 3 legs ensures secure grip and balanced pull
- Puller hook forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Interchangeable hooks available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Specifications
| Usable clamping reach [mm] | 100 mm |
|---|---|
| Spindle thread size | M 14x1,5 x 140 |
| Clamping width a2 (min.) internal pulling [mm] | 80 mm |
| Clamping width a2 (max.) internal pulling [mm] | 180 mm |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 15 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 3 |
| reversible arms available | Yes |
| Number of arms | 3 |
| Net weight [kg] | 1.4 kg |
| Hook brake available | Yes |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 130 mm |
| Hydraulic spindle optional | - |
