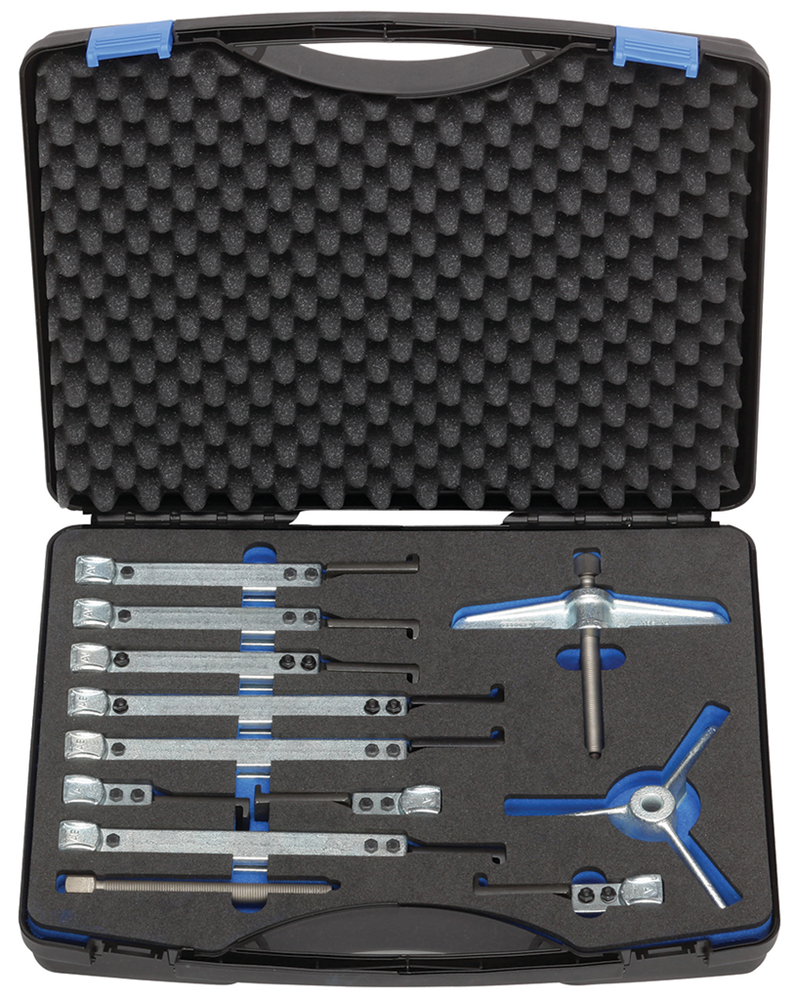

Product Overview
- In plastic case
- Contents: 2 spindles
- 1 cross-beam each 2- and 3-arm pattern and 9 slim pulling legs in 3 lengths
- 2. spindle in case 1.07/K saves working time
- 1.07/K-2 both sides with burled inlay
Technical Specifications
| Contents (Qty of pieces) | 10 |
|---|---|
| Width of hooked foot [mm] | 27 mm |
| Usable depth of hooked foot d2 [mm] | 7.5 mm |
| Thickness of hooked foot at tip | 3.7 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 2.5 |
| Net weight [kg] | 6.54 kg |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 130 mm |
| Hydraulic spindle optional | - |
| Usable clamping reach | 100 / 200 / 250 mm |
| Type | with plastic case |
| Parts list (Text) | 106/2A03 Traverse 2-arm 260 mm, 107/2A03 Cross beam 3-arm 260 mm, 106/A-100-S Pull-off hook slim 100 mm (3x), 106/A-200-S Pull-off hook slim 200 mm (3x), 106/A-250-S Pull-off hook slim 250 mm (3x), E-1.1406140 Spindle 17, M14x1.5, 140 mm (2x), 107/1A |
