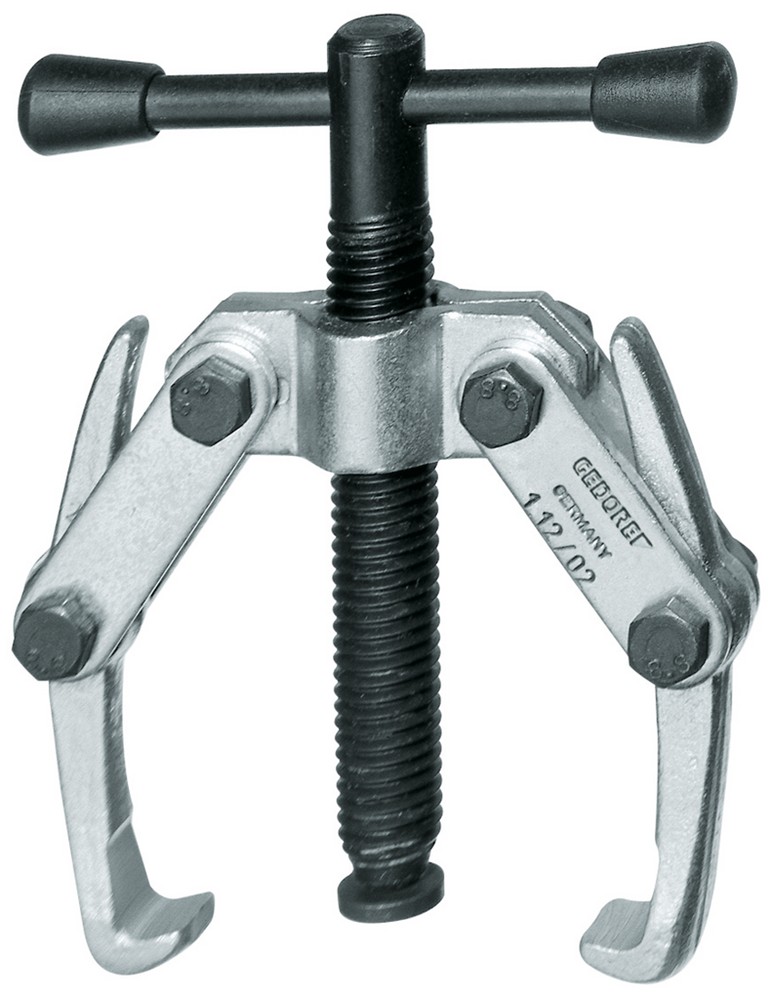

Product Overview
- Ideal for removing small parts such as battery terminals, pulleys, wheels, ball bearings, etc.
- The legs grip automatically
Technical Specifications
| Usable clamping reach [mm] | 40 mm |
|---|---|
| Spindle thread size | M 10x1,5 x 60 |
| Width of hooked foot [mm] | 10 mm |
| Usable depth of hooked foot d2 [mm] | 5 mm |
| Thickness of hooked foot at tip | 2.0 mm |
| Tractive force (max.) [t] | 0.5 |
| Number of arms | 2 |
| Net weight [kg] | 0.16 kg |
| Can be retrofitted with hydraulic spindle | No |
| automatic pressing | Yes |
| Clamping width (max.) external pulling [mm] | 60 mm |
| Total length [mm] | 90 mm |
| Total width [mm] | 69 mm |
| Total height [mm] | 19 mm |
