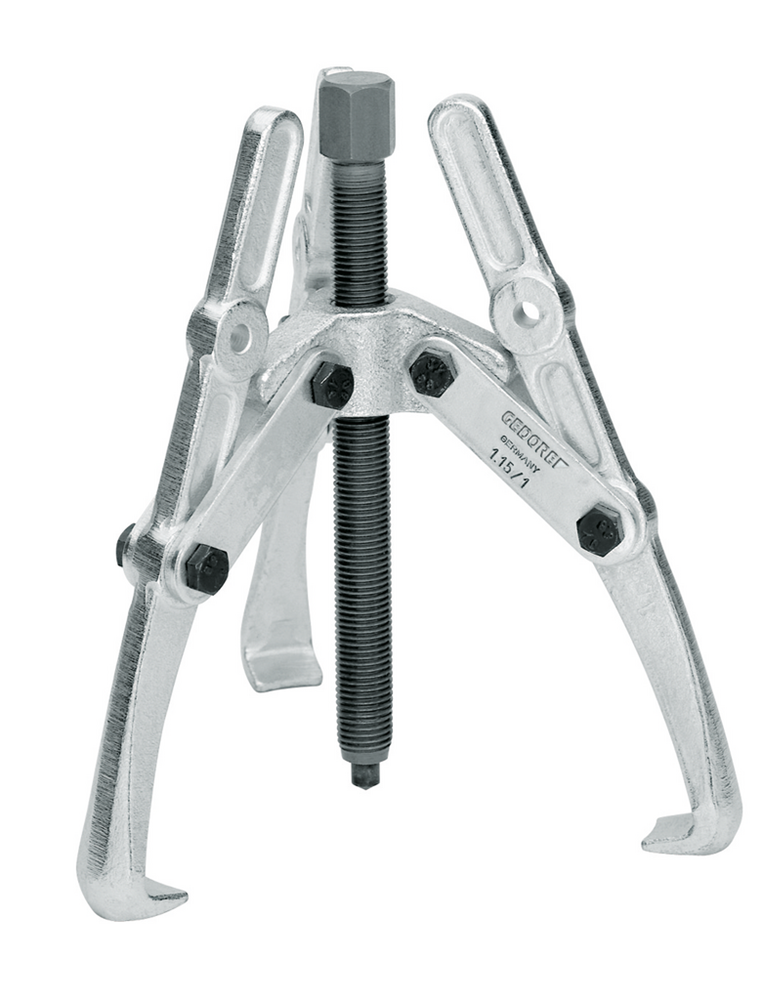

Product Overview
- Tried and tested, particularly strong design for removing discs, wheels, ball bearings etc.
- With technical and economical benefits due to the variable clamping reach and automatic grip of the legs
- Particularly suitable for pulling off V-belt pulleys and flywheels which are mounted on longer shafts
- Can be retrofitted with hydraulic spindle
Technical Specifications
| Usable clamping reach [mm] | 210 mm |
|---|---|
| Spindle thread size | M 18x1,5 x 200 |
| Width of hooked foot [mm] | 25 mm |
| Usable depth of hooked foot d2 [mm] | 16 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 25 mm |
| Tractive force (max.) [t] | 7.5 |
| Number of arms | 3 |
| Net weight [kg] | 3.3 kg |
| Can be retrofitted with hydraulic spindle | Yes |
| automatic pressing | Yes |
| Clamping width (max.) external pulling [mm] | 200 mm |
| Hydraulic spindle optional | - |
