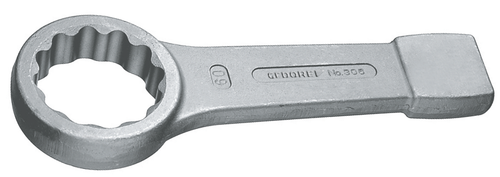

Product Overview
- Form A
- Carefully forged and professionally machined
- Ring: 10° offset from shaft, with UD profile for gentle transmission of force
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use
Technical Specifications
| Net weight [kg] | 5.625 kg |
|---|---|
| Total length [mm] | 755 mm |
| Total width [mm] | 135 mm |
| Total height [mm] | 55 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 105.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 70 |
| Head height 1 [mm] | 35 mm |
| Standard | not standardised |
| Weight | 12.400 lbs |
| Width of head 2 [mm] | 143 mm |
| Head height 2 [mm] | 24 mm |
| Ring profile | bi-hex |
| Mouth position 1 | 15° |
| Height of offset 1 | 53.5 mm |
| Ring offset | 10° |
