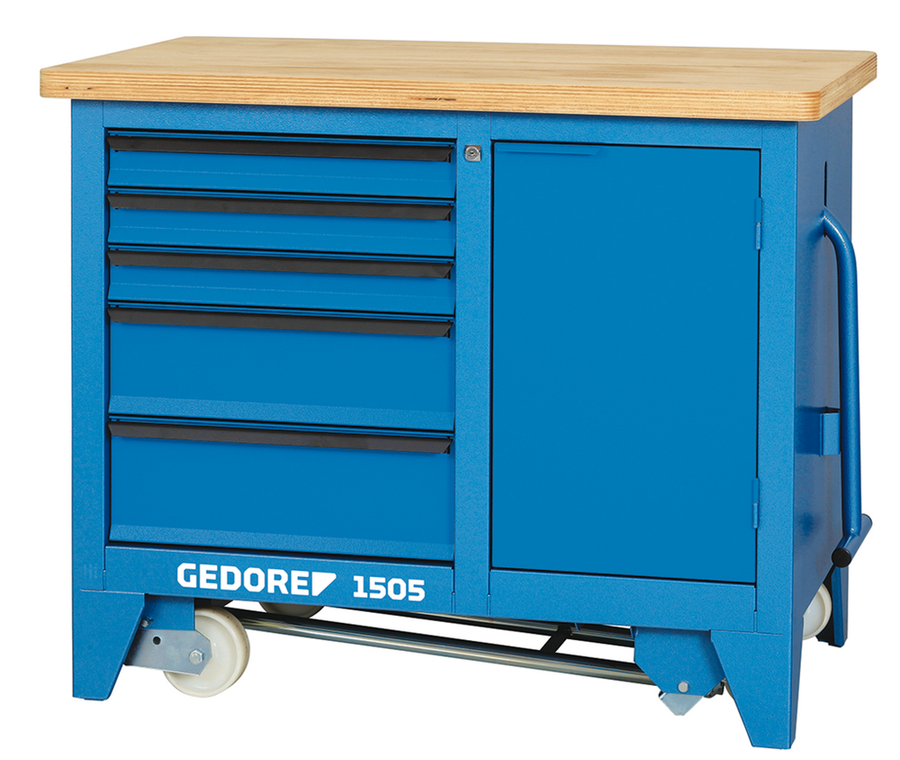

Product Overview
- Dimensions: H 900 x W 1100 x D 652 mm
- Large storage space with lower shelf and door
- Easy, safe movement with pull handle
- Safety through heel protection for persons
- Drawers: Central locking with cylinder clock
- 5 wide drawers (W 480 x D 550 mm) with partial extension (505 mm), removable
- Safety locking per drawer, one-hand operation
- Guide rails with ball bearings
- Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
- 4 GEDORE rollers with roller bearings with independent wheel suspension
- Absolutely stable standing when lowered
- Mobile due to hydraulic raising mechanism, just lift the pull handle
- High floor clearance
- Accessories: 9 longitudinal (LT) and 9 transverse dividers (QT) made of galvanised sheet steel
- Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT)
- Rear panel No. R 1504 L can be added
- Special colours and designs on request
- Delivery without tools and accessories
Technical Specifications
| Net weight [kg] | 139 kg |
|---|---|
| Total width [mm] | 1.100 mm |
| Total height [mm] | 900 mm |
| Material | Steel sheet |
| Surface | powder-coated |
| Total depth [mm] | 650 mm |
| Colour | blue |
| RAL colour tone | RAL 5017 |
| Dimension (L x W x H) | 900 mm x 1.100 mm x 650 mm |
| Thickness (e.g. workplate) | 40 mm |
| Drawer type | 3x Type 1, H = 79 mm, 1x Type 2, H = 160 mm, 1x Type 3, H = 180 mm |
| Number of crosswise dividers | 2 |
| Number of lengthwise dividers | 3 |
| Number of drawers | 5 |
| Load capacity kg | 500 kg |
| Worktop dimensions | 1100 x 652 x 40 mm |
| Lockable | Yes |
| Number of shelves | 1 |
| Number of wheels | 4 |
| Working height | 900 mm |
| Static load carrying capacity [kg] | 2000 kg |
| Load capacity per drawer [kg] | 40 kg |
| Load capacity heavy duty drawer [kg] | 60 kg |
