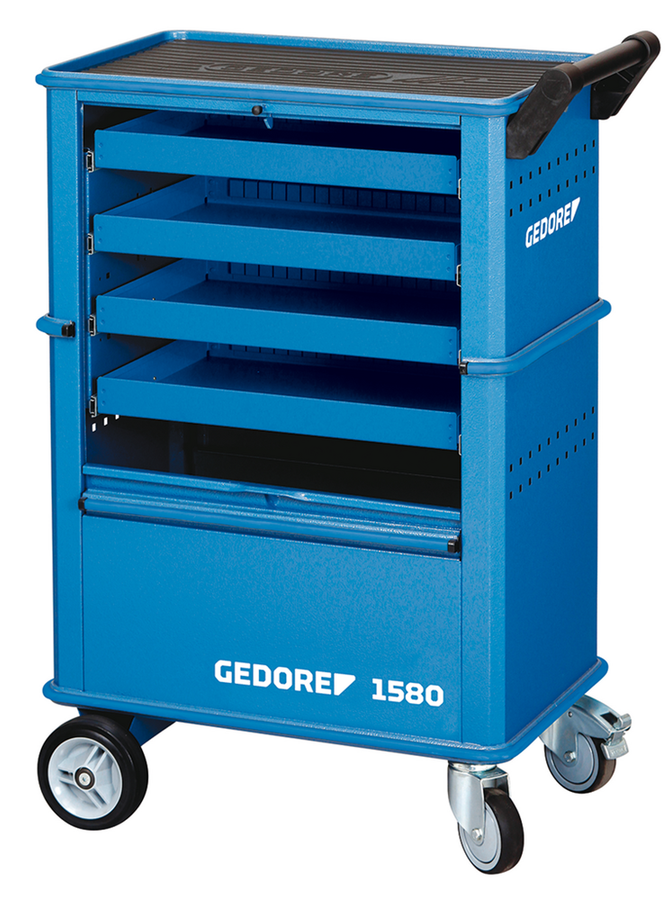

Product Overview
- Double sided metal shutters to secure the whole internal space
- Worktop with tough ABS plastic plate
- Manoeuvrable and easy to steer with drive/steer handle
- Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
- Safety through heel protection and all-round impact protection for people and the environment
- GEDORE blue
- Drawers: Central locking with cylinder clock
- 4 wide drawers (W 480 x D 325 x H 45 mm), all drawers extendable on both sides
- 1 large capacity storage compartment in the bottom
- Ball-bearing guide rails, with middle and end catches
- Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
- 2 high-performance wheels on roller bearings (fixed castors Ø 140 mm)
- 2 GEDORE easy-running wheels with ball bearings (swivel castors
- 100 mm), one of them with total brake each
- The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
- Accessories: 8 longitudinal (LT) and 2 transverse dividers (QT) made of galvanised sheet steel
- Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT)
- Can be extended as required with GEDORE attachment chest No. 1430
- Special colours and designs on request
- Delivery without tools and accessories
Technical Specifications
| Net weight [kg] | 41 kg |
|---|---|
| Total length [mm] | 400 mm |
| Total width [mm] | 625 mm |
| Total height [mm] | 930 mm |
| Material | Steel sheet |
| Surface | powder-coated |
| Colour | traffic blue |
| RAL colour tone | RAL 5017 |
| Dimension (L x W x H) | 400 mm x 625 mm x 930 mm |
| Drawer type | 4x H. x B. x T. = 45 x 480 x 325 mm, plus Großraumstaufach |
| Number of crosswise dividers | 2 |
| Number of lengthwise dividers | 3 |
| Number of drawers | 4 |
| Lockable | Yes |
| Number of wheels | 4 |
| Working height | 930 mm |
| Static load carrying capacity [kg] | 300 kg |
| Load capacity per drawer [kg] | 20 kg |
| Fixed roller diameter (2x) | 140 |
| Swivel castor diameter with brakes (2x) | 100 |
