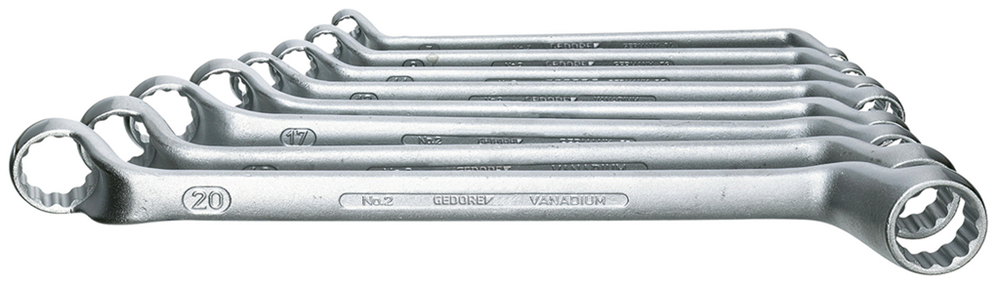

Product Overview
- Most common sizes in a kit
- Rings deep offset, strong but thin walls
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft, with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical Specifications
| Contents (Qty of pieces) | 10 |
|---|---|
| Net weight [kg] | 2.76 kg |
| Material | Chrome-vanadium steel 31CrV3 |
| Parts list (Text) | 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 21x23 24x27 |
| Surface | chrome-plated |
| Standard | DIN 838, ISO 3310, ISO 1085, ISO 10104 |
| Ring profile | UNIT-DRIVE |
