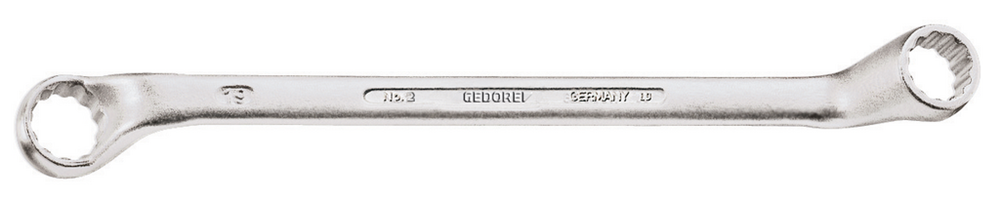

Product Overview
- Rings deep offset, strong but thin walls
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft, with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical Specifications
| Net weight [kg] | 1.535 kg |
|---|---|
| Total length [mm] | 495 mm |
| Total width [mm] | 70 mm |
| Total height [mm] | 53 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 62.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 41 |
| Width across flats 2 [mm] | 46 |
| Head height 1 [mm] | 20.4 mm |
| Width across flats [mm] | 41x46 |
| Standard | DIN 838, ISO 3310, ISO 1085, ISO 10104 |
| Width of head 2 [mm] | 68.9 mm |
| Head height 2 [mm] | 22.2 mm |
| Ring profile | UNIT-DRIVE |
| Height of offset 1 | 42.8 mm |
| Ring offset | 5° |
