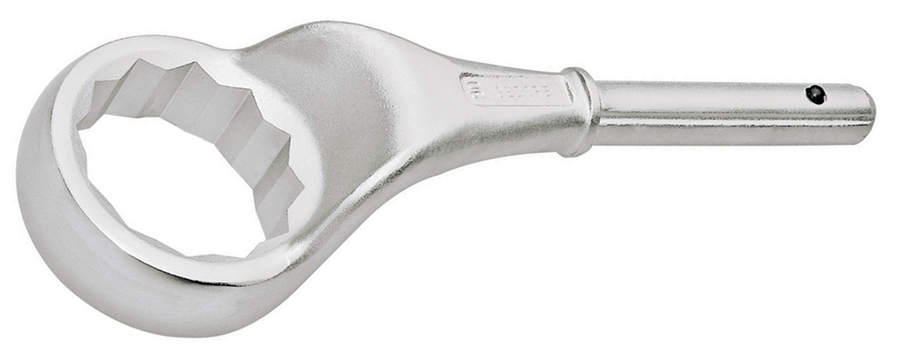

Product Overview
- Heavy-duty pattern for highest torques
- Special sizes available on request
- Optional accessories: No. 2 AR extension tube for extending the lever arm
- With UD profile for gentle power transmission, from SW 65 12-edge
Technical Specifications
| Net weight [kg] | 4.85 kg |
|---|---|
| Total length [mm] | 410 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 140.0 mm |
| Type | heavy-duty design for highest torques |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 90 |
| Head height 1 [mm] | 45 mm |
| Diameter 1 [mm] | 29.1 |
| Standard | not standardised |
| Ring profile | bi-hex |
| Recommended accessories | 2 AR 3 Extension tube for 2 A 60 - 2 A 95, 860 mm, Ø 30 mm |
| Height of offset 1 | 63 mm |
