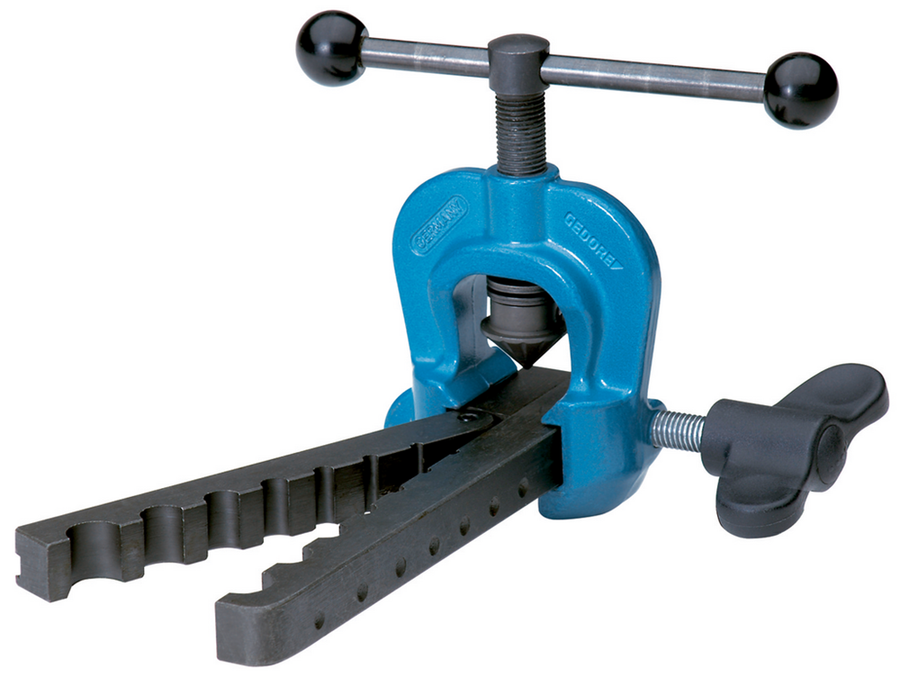

Product Overview
- For flaring copper and light-alloy pipes of various hardnesses
- For cooling systems, refrigeration technique
- Body in pressure-cast zinc
- Painted blue
- Flared cone 90° hardened = 45° bending from the tube
- With cone for 180° flaring = 90° angle from pipe
- Clamping jaws made from steel, smooth inside, phosphated
- Flaring devices for brake line tubes see No. 1101-2340
Technical Specifications
| Net weight [kg] | 1.4 kg |
|---|---|
| Material | Zinc die-cast |
| Parts list (Text) | for metric tubes 4, 4.75, 6, 8, 10, 12, 14 mm, 1 Flare body No. 233000, 1 thrust piece 180° No. 233200, 1 clamping jaw 4-14 mm No. 233101 |
| Flanging | metric |
