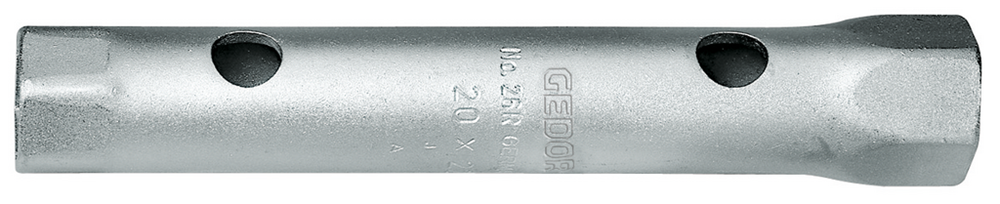

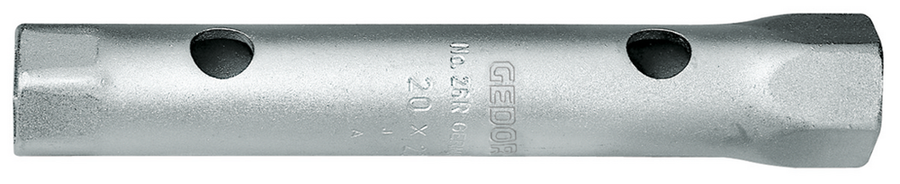

Product Overview
- With hollow shaft, in tubular steel
- With hole for tommy bars 26 D and 26 RS (please order separately)
- * not standardised
Technical Specifications
| Net weight [kg] | 0.264 kg |
|---|---|
| Total length [mm] | 168 mm |
| Total width [mm] | 30 mm |
| Total height [mm] | 27 mm |
| Material | Carbon steel C35 |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 20 x 22 |
| Standard | similar to DIN 896 - Form B, ISO 2236, ISO 1085 |
| Insertion depth 1 | 15.0 mm |
| Insertion depth 2 | 16.0 mm |
| Recommended accessories | 26 D 12 Pivot pin 250 mm, Ø 12 mm, 26 RS-626 S-3 Stepped pivot pin 330 mm, Ø 11.7 + 13.7 + 16 mm |
