Product Overview

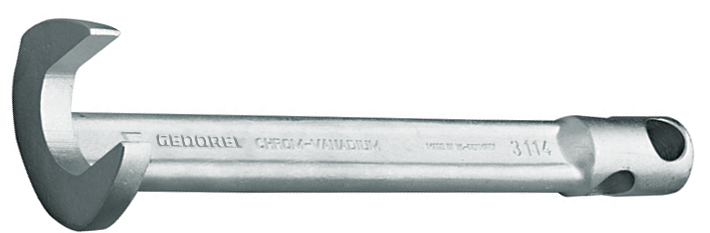

- Angled open-end wrench for working in hard-to-reach areas
- No. 3114 = Delivery without pivot pin
- No. DS 3114 = supplied with rotary pin 26 D
Technical Specifications
| Net weight [kg] | 0.16 kg |
|---|---|
| Total length [mm] | 200 mm |
| Use | For working in extremely difficult to access areas |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 33.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 16 |
| Head height 1 [mm] | 6 mm |
| Diameter 1 [mm] | 10.5 |
| Bore Ø [mm] | 11 mm |
| Shaft diameter | 16.8 mm |
| Tommy bar-Ø 1 | 10.00 mm |
| Recommended accessories | 26 D 10 Pivot pin 200 mm, Ø 10 mm |
