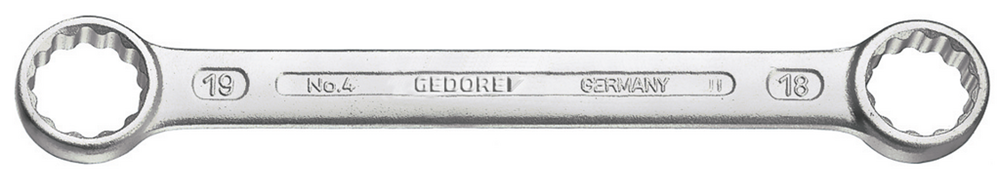

Product Overview
- Flat pattern
- Thin walled rings
- UD-profile
- * not standardised
Technical Specifications
| Net weight [kg] | 0.022 kg |
|---|---|
| Total length [mm] | 115 mm |
| Total width [mm] | 16 mm |
| Total height [mm] | 5 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 13.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 8 |
| Width across flats 2 [mm] | 10 |
| Head height 1 [mm] | 5.2 mm |
| Width across flats [mm] | 8x10 |
| Standard | ISO 3318, ISO 1085 |
| Width of head 2 [mm] | 16 mm |
| Ring profile | UNIT-DRIVE |
