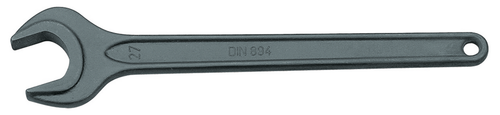

Product Overview
- With flat heads
- Satin non-glare finish
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Secure grip thanks to slim profile shaft
- Overloading indicated by deformation
- Top-grade industrial quality for the hardest of continuous use
Technical Specifications
| Net weight [kg] | 0.317 kg |
|---|---|
| Total length [mm] | 257 mm |
| Total width [mm] | 56 mm |
| Total height [mm] | 8 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 52.0 mm |
| Surface | matte chrome-plated |
| Head height 1 [mm] | 8 mm |
| Standard | similar to DIN 3110, ISO 3318, ISO 1085, ISO 10102 |
| Width across flats 1 [AF] | 15/16" |
| Width across flats 2 [AF] | 1" |
| Width of head 2 [mm] | 55 mm |
| Width across flats [AF] | 15/16"x1" |
| Mouth position 1 | 15° |
