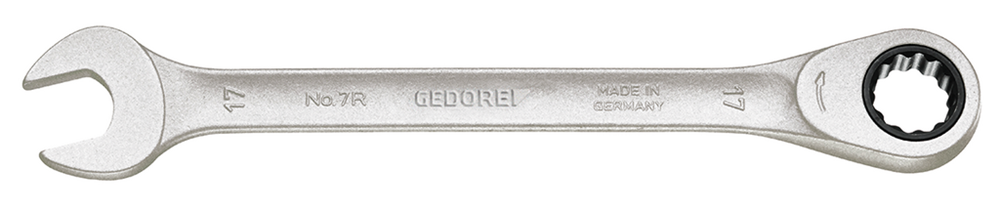

Product Overview
- With same size each end
- UD-Profile
- High torque transfer
- Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated
- Hot forged
- Jaw: ground precisely to exact nominal size for optimum contact areas
- In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet
- Hollow profile comfortable to hold
- Warp-resistant geometry with double T-girder effect
- For ratchet loosening and fast tightening
- Ring 13° offset from shaft, reversible
Technical Specifications
| Net weight [kg] | 0.03 kg |
|---|---|
| Total length [mm] | 141 mm |
| Total width [mm] | 20 mm |
| Total height [mm] | 7 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 17.5 mm |
| Surface | chrome-plated |
| Head height 1 [mm] | 7 mm |
| Width across flats [mm] | 8.0 |
| Standard | not standardised |
| Return angle | 7 ° |
| Width of head 2 [mm] | 19.8 mm |
| Head height 2 [mm] | 3.8 mm |
| Jaw set | 15 ° |
| Ring profile | UNIT-DRIVE |
