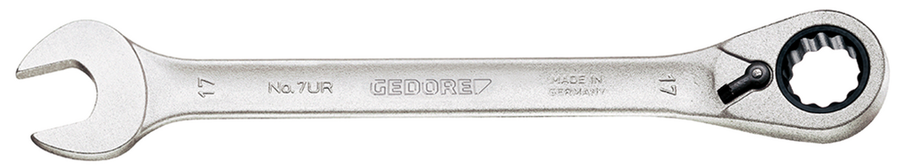

Product Overview
- With same size each end
- UD-profile
- High torque transfer
- Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated
- Hot forged
- Jaw: ground precisely to exact nominal size for optimum contact areas
- In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet
- Ring side angled by 13°, reversible
- With combination ratchet spanner No. 7 R for ratchet loosening and fast tightening
- Hollow profile comfortable to hold
- Warp-resistant geometry with double T-girder effect
Technical Specifications
| Net weight [kg] | 0.264 kg |
|---|---|
| Total length [mm] | 275 mm |
| Total width [mm] | 45 mm |
| Total height [mm] | 24 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 40.0 mm |
| Surface | chrome-plated |
| Head height 1 [mm] | 12.5 mm |
| Width across flats [mm] | 21.0 |
| Standard | not standardised |
| Return angle | 6 ° |
| Width of head 2 [mm] | 45.5 mm |
| Head height 2 [mm] | 6.9 mm |
| Jaw set | 15 ° |
| Ring profile | UNIT-DRIVE |
| Ring angle | 13° |
