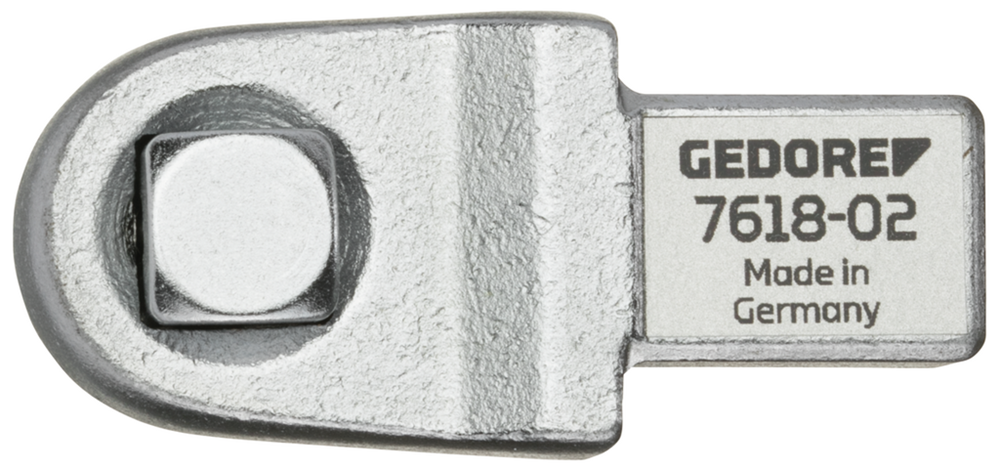

Product Overview
- For solving difficult assembly problems, easily replaceable
- Forged
- Chromium vanadium steel
- Matt chrome-plated
- With locking pin
Technical Specifications
| Net weight [kg] | 0.398 kg |
|---|---|
| Total width [mm] | 40 mm |
| Material | Chrome-vanadium steel |
| Width of head 1 [mm] | 40.0 mm |
| Drive square inch | 3/4" |
| Drive connector square [metric] | 20 mm |
| Drive connector rectangular | 14 x 18 |
| Depth gauge [metric] | 25.0 mm |
| Continuous load | 3/4" = 400 N·m |
| Head height 2 [mm] | 25 mm |
