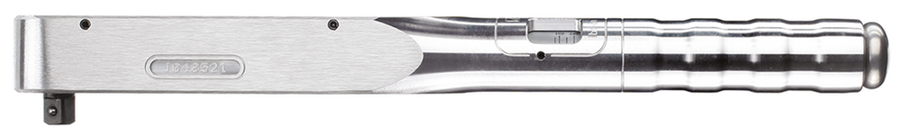

Gedore 7682000 8560-01 Torque wrench DREMOMETER A 8-40 Nm
Gedore 7682000 8560-01 Torque wrench DREMOMETER A 8-40 Nm
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Gedore |
|---|---|
| SKU | GED7682000 |
| MPN | 7682000 |
| Barcode | 4002805856017 |
| Weight | 1.20 KGS |
| Dimensions | 8.50 × 6.50 × 49.00 cm (W × H × D) |
Description
- For use in almost all industrial manufacturing areas
- Automatic short-path actuation with tactile impulse and audible signal
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
- Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a lever mechanism
- Forged lever chain from our group own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- Single- and double-square drive for controlled bi-directional tightening
Specifications
| Net weight [kg] | 1.2 kg |
|---|---|
| Total length [mm] | 338 mm |
| Total width [mm] | 35 mm |
| Total height [mm] | 43.5 mm |
| Material | Aluminium alloy |
| Width of head 1 [mm] | 35.0 mm |
| Target groups | Automotive, Electronics industry, Precision mechanics, Military, Energy, Mechanical engineering, Workshop, Service, Agriculture, Control cabinet construction |
| Head height 1 [mm] | 30 mm |
| Standard | DIN 3120 - A 10, ISO 1174 |
| Drive square inch | 3/8" |
| Drive connector square [metric] | 10 mm |
| Range of application | Assembly, Series assembly, Production, Maintenance and repair |
| Torque (max.) [Nm] | 40 Nm |
| Drive type/drive | Single square rigid |
| Torque (min.) [Nm] | 8 Nm |
| Torque (max.) [lbf·in] | 70 lbf·in |
| Precision +/- | +/- 3 % |
| Tightening direction | Right |
| Torque range (min./max.) [Nm] | 8 Nm - 40 Nm |
| Torque range (min./max.) [lbf·ft] | - |
| Trigger mechanism | Short path triggering |
| Torque (min.) [lbf·in] | 350 lbf·in |
| Scale division [Nm] | 5 Nm |
| Storage/Content | Plastic box |
| Torque wrench type | A |
| Calibration length | 262 mm |
| Torque range (min./max.) [lbf·in] | 70 lbf·in - 350 lbf·in |
| Graduation [lbf·in] | 50 lbf·in |
| Distance housing - square drive | 17.5 mm |
