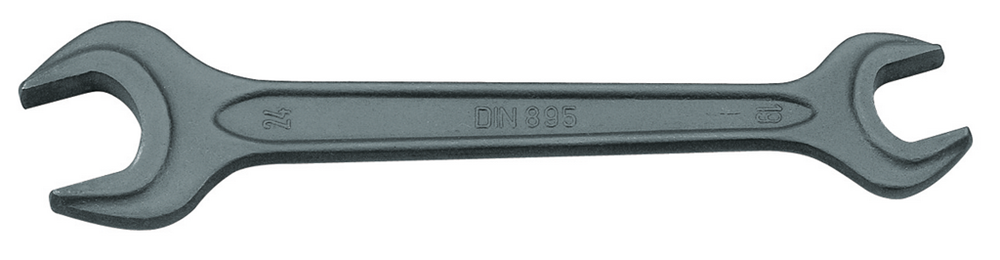

Product Overview
- Carefully forged and professionally machined: Jaw: ground precisely to exact nominal size for optimum contact areas
- Jaw set at 15°
- Secure grip thanks to profile shaft - very ergonomic and handy
- Overloading indicated by deformation
Technical Specifications
| Net weight [kg] | 0.141 kg |
|---|---|
| Total length [mm] | 195 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 40.0 mm |
| Surface | manganese-phosphated |
| Width across flats 1 [mm] | 19 |
| Width across flats 2 [mm] | 22 |
| Head height 1 [mm] | 8 mm |
| Width across flats [mm] | 19x22 |
| Colour | steel grey |
| Standard | DIN 895, ISO 3318, ISO 1085 |
| Width of head 2 [mm] | 46 mm |
