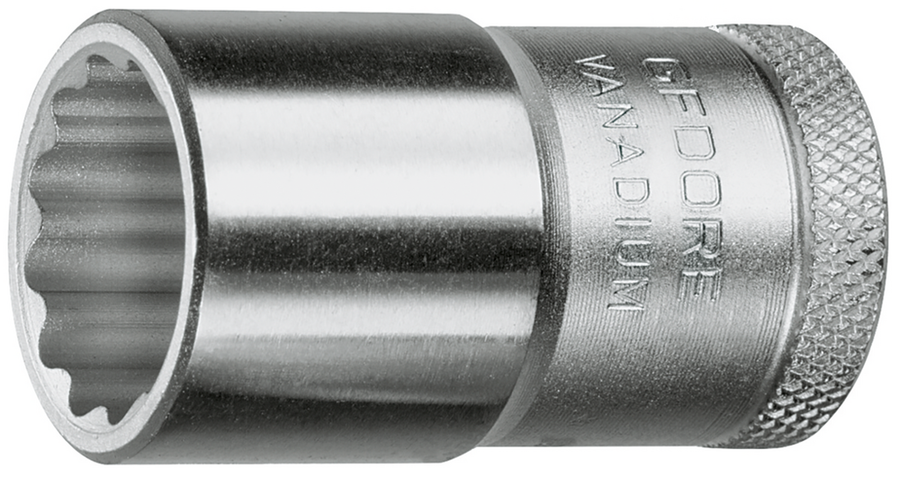

Product Overview
- Manually operated, with non-slip cross knurling
Technical Specifications
| Net weight [kg] | 0.225 kg |
|---|---|
| Total length [mm] | 44.5 mm |
| Total width [mm] | 44.2 mm |
| Material | Chrome-vanadium steel |
| Surface | ground, chrome-plated |
| Standard | DIN 3120 - C 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Backup | Ball Catching Cricket |
| Working length | 44.5 mm |
| Insert-Ø 1 | 44.2 mm |
| Insert-Ø 2 | 36.0 mm |
| Operating depth | 22.5 mm |
| Width across flats 1 [WW] | 3/4W |
