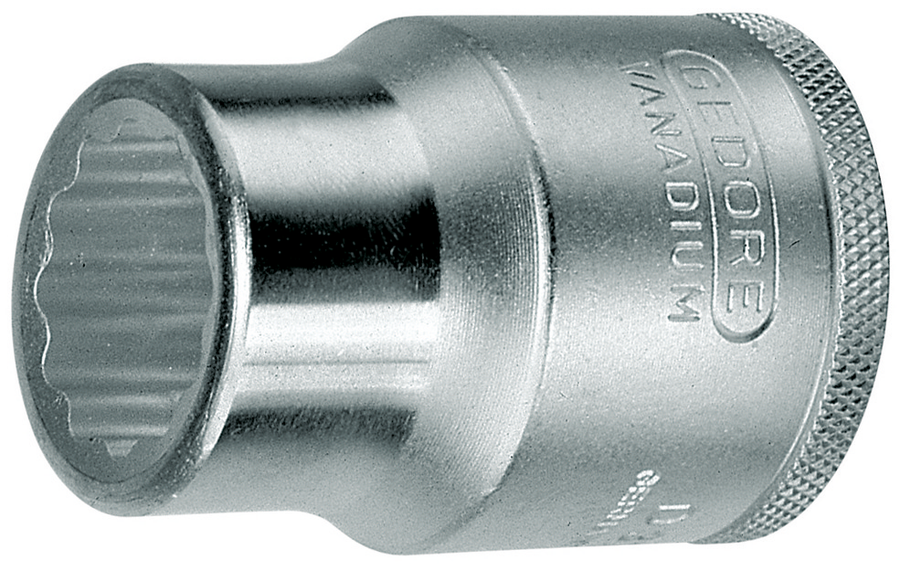

Product Overview
- Manually operated, with non-slip cross knurling
- Vanadium steel 31CrV3, matt chromium-plated
Technical Specifications
| Net weight [kg] | 0.811 kg |
|---|---|
| Total length [mm] | 68.5 mm |
| Total width [mm] | 69.2 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | matte chrome-plated |
| Standard | ISO 1174, DIN 3120 - D 20 |
| Drive mount, square [metric] | 20.0 mm |
| Drive connector square [inch] | 3/4" |
| Backup | Locking pin |
| Width across flats 1 [AF] | 2" |
| Working length | 68.5 mm |
| Insert-Ø 1 | 69.2 mm |
| Insert-Ø 2 | 48.0 mm |
| Operating depth | 34.5 mm |
