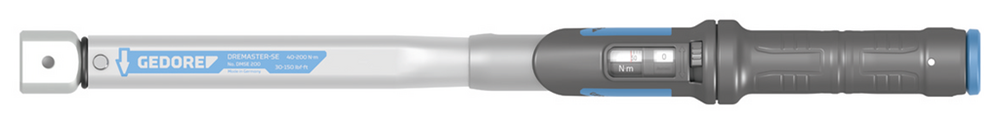

Gedore 2641496 DMSE 400 Torque wrench DREMASTER SE 80-400 Nm
Gedore 2641496 DMSE 400 Torque wrench DREMASTER SE 80-400 Nm
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Gedore |
|---|---|
| SKU | GED2641496 |
| MPN | 2641496 |
| Barcode | 4002805931578 |
| Weight | 2.14 KGS |
| Dimensions | 7.00 × 5.00 × 75.00 cm (W × H × D) |
Description
- For controlled r.h and l.h. fastening
- Ergonomically shaped plastic handgrip with calibration aid
- Change-over between Nm main scale and lbf·ft ancillary scale to avoid reading errors when setting the torque wante
- With micrometre scale for main Nm scale for setting interim values
- Release system triggers a tactile and audible signal
- Ergonomic system for torque adjustment with reference symbol
- Secured adjusting/setting system
- Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
- Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
Specifications
| Net weight [kg] | 2.135 kg |
|---|---|
| Total length [mm] | 677.2 mm |
| Total width [mm] | 42.5 mm |
| Total height [mm] | 42.5 mm |
| Material | Steel tube (construction), Plastic |
| Target groups | Automotive, Industry, Construction and commercial vehicles, Military, Energy, Mechanical engineering, Utilities, Service, Agriculture, Oil & Gas |
| Range of application | Assembly, Series assembly, Production, Maintenance and repair |
| Torque (max.) [Nm] | 400 Nm |
| Drive type/drive | Rectangular cavity |
| Torque (min.) [Nm] | 80 Nm |
| Torque (max.) [lbf·ft] | 300 lbf·ft |
| Precision +/- | +/- 3 % |
| Tightening direction | Left and right |
| Drive connector rectangular | 14 x 18 |
| Torque range (min./max.) [Nm] | 80 Nm - 400 Nm |
| Torque (min.) [lbf·ft] | 60 lbf·ft |
| Torque range (min./max.) [lbf·ft] | 60 lbf·ft - 300 lbf·ft |
| Trigger mechanism | Short path triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| vernier Nm | 1 Nm |
| Backup | Locking pin |
| Depth gauge [metric] | 25.0 mm |
| Graduation [lbf·ft] | 10 lbf·ft |
| Insertion depth 1 | 25.0 mm |
| Scale division [Nm] | 10 Nm |
| Storage/Content | Box |
| Calibration length | 604.9 mm |
| Lever length drive side [mm] | 42 mm |
| Lever length handle side [mm] | 655.2 mm |
| Receptacle width [mm] | 33 mm |
| Distance housing - square drive | 33 mm |
| Mounting height [mm] | 25 mm |
