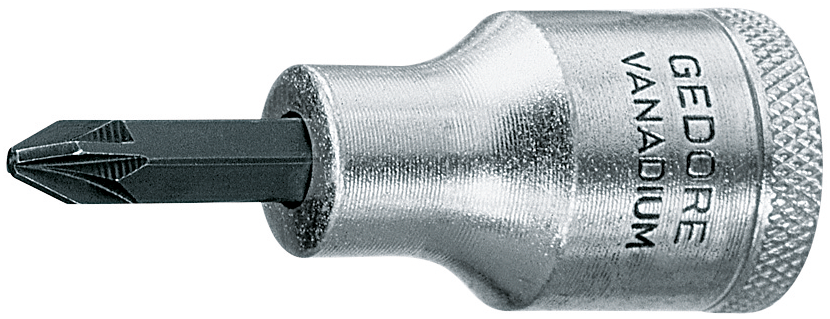

Product Overview
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in vanadium special steel, gun-metal finish
Technical Specifications
| Net weight [kg] | 0.108 kg |
|---|---|
| Total length [mm] | 60 mm |
| Material | Vanadium steel |
| Surface | chrome-plated |
| Standard | DIN 3120 - C 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Output tip reference standard | DIN ISO 8764-1 PZ |
| Remuneration of the output tip | burnished |
| Tip size cross recess (PZ) | PZ 4 |
| Backup | Ball Catching Cricket |
| Tip length | 22.0 mm |
| Insert Ø Actuator | 23 mm |
