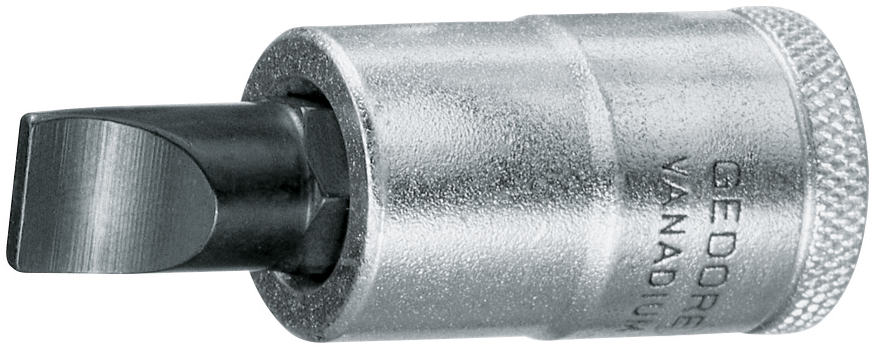

Product Overview
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in vanadium special steel, manganese-phosphated
Technical Specifications
| Net weight [kg] | 0.115 kg |
|---|---|
| Total length [mm] | 60 mm |
| Material | Vanadium steel |
| Surface | chrome-plated |
| Standard | DIN 3120 - C 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Output tip reference standard | DIN ISO 2380-1 - Form B |
| Tip size Slot | 10 |
| Backup | Ball Catching Cricket |
| Tip length | 22.0 mm |
| Insert Ø Actuator | 22.5 mm |
| Blade thickness | 1.6 mm |
