Product Overview
- The sleeve kit is suitable for a quick, neat and safe removal and installation of the silent bloc on the axle suspension.
Technical Specifications
| Contents (Qty of pieces) | 4 |
|---|---|
| Net weight [kg] | 13.4 kg |

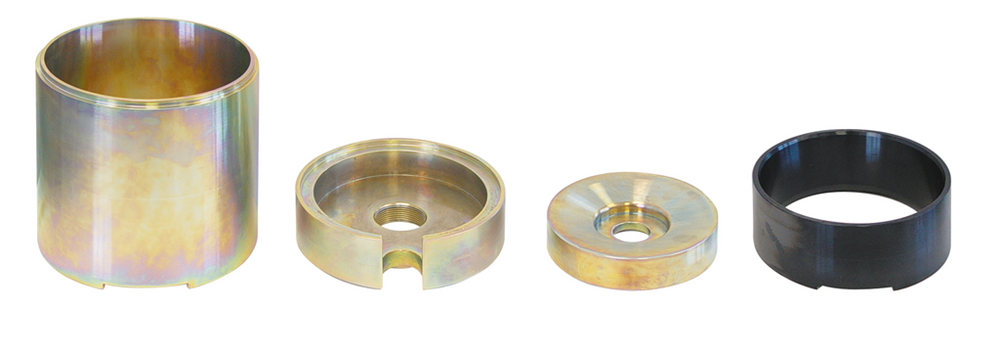

| Parts list (Text) | 1x KL-1011-1101 - Conical sleeve 139 mm dia. 1x KL-1011-1102 A - Thrust piece 1x KL-1011-1103 - Support sleeve 1x KL-1011-1104 - Cover |
| Target groups | Construction and commercial vehicles, Agriculture |
| Suitable for | Suitable for silent blocs with a bore diameter of 139 mm (silentbloc removed approx. 155mm); e.g. for SAF INTRADISC plus air suspension axles. |
| Required accessories | Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump KL-0039-1920-1 - Pull spindle KL-0040-3009 - Clamping nut KL-0039-1002 - Mounting adapter, KL-0039-1340 - Centring ring, hydraulic (28 t): KL-0040-2800 - H |
| Drive type | hydraulic |
| for outside Ø, installed [mm] | 139 mm |
| for outside Ø, removed [mm] | 155 mm |
