Product Overview

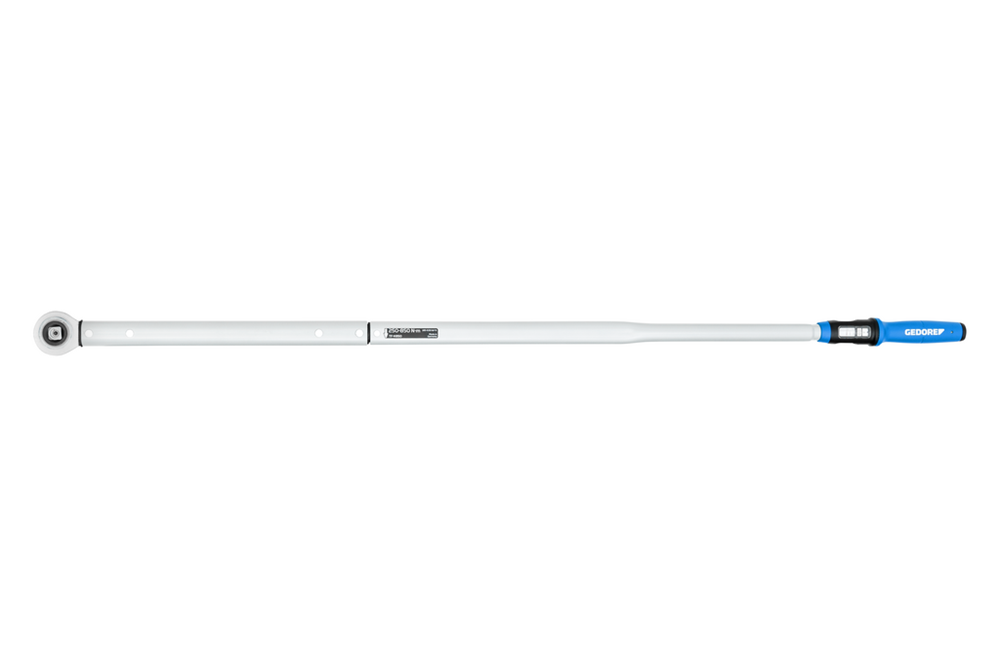

- Adjustable, releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
- For controlled right- and left-hand tightening (square socket for direction change)
- 3/4" square drive through with pin lock
- Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
- New ergonomic handle, shaped according to the natural grip position of the hand, clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
- Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
- With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
- Scale line positioned directly above the scale prevents reading errors (parallax errors)
- Unit labeling integrated in the scale frame and also protected by viewing windows
- The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached, incl. roll away protection, prevents rolling away when the tool is put down
Technical Specifications
| Net weight [kg] | 5.65 kg |
|---|---|
| Total length [mm] | 1.390 mm |
| Total width [mm] | 69 mm |
| Total height [mm] | 51 mm |
| Material | Steel tube (construction), Plastic |
| Width of head 1 [mm] | 69.0 mm |
| Target groups | Automotive, Industry, Construction and commercial vehicles, Consumer, Energy, Mechanical engineering, Workshop, Service, Agriculture, Oil & Gas, Utilities |
| Head height 1 [mm] | 31 mm |
| Standard | ISO 1174, DIN 3120 - B 20 |
| Drive square inch | 3/4" |
| Drive connector square [metric] | 20 mm |
| Range of application | Assembly, Production, Maintenance and repair |
| Return angle | 10 ° |
| Number of teeth | 36 |
| Torque (max.) [Nm] | 850 Nm |
| Drive type/drive | Push-through square |
| Torque (min.) [Nm] | 250 Nm |
| Torque (max.) [lbf·ft] | 630 lbf·ft |
| Precision +/- | +/- 3 % |
| Tightening direction | Left and right |
| Torque range (min./max.) [Nm] | 250 Nm - 850 Nm |
| Torque (min.) [lbf·ft] | 185 lbf·ft |
| Torque range (min./max.) [lbf·ft] | 185 lbf·ft - 630 lbf·ft |
| Trigger mechanism | Short path triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| vernier Nm | 1 Nm |
| Graduation [lbf·ft] | 10 lbf·ft |
| Scale division [Nm] | 10 Nm |
| Storage/Content | Box |
| Graduation | 10 |
| Calibration length | 1285.8 mm |
| Distance housing - square drive | 34.5 mm |
