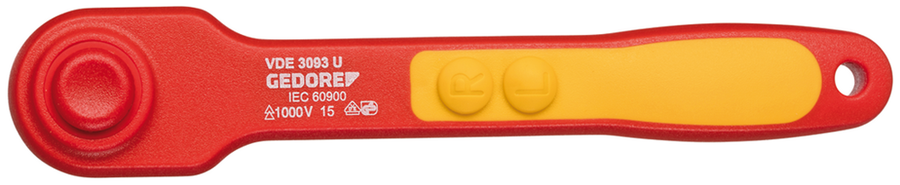

Product Overview
- Smooth running and robust
- Secure holding of the attachments due to push-button locking with ball in the square drive
- Direction changed by 2 push-buttons, marked R and L, on the shaft
Technical Specifications
| Net weight [kg] | 0.22 kg |
|---|---|
| 1000 V insulated | Yes |
| VDE certified | Yes |
| Total length [mm] | 185 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Standard | DIN 3120 - A 10, ISO 1174, EN 60900/IEC60900 |
| Drive square inch | 3/8" |
| Drive connector square [metric] | 10 mm |
| Return angle | 8.2 ° |
| Push-button release | Yes |
