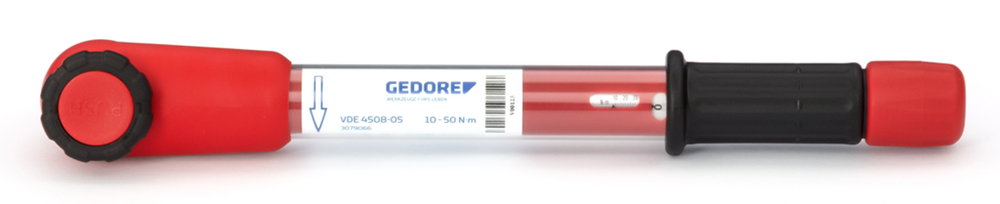

Product Overview
- Controlled screw tightening in the most widely used range
- Release system triggers a tactile and audible signal
- Scale with Nm division
- Recalibration without destroying the insulation
- Safety button to protect against accidental release of the insert
Technical Specifications
| Net weight [kg] | 1.5 kg |
|---|---|
| 1000 V insulated | Yes |
| VDE certified | Yes |
| Total length [mm] | 369 mm |
| Total width [mm] | 50 mm |
| Total height [mm] | 80 mm |
| Width of head 1 [mm] | 50.0 mm |
| Target groups | Automotive, Electronics industry, Industry, Military, Energy, Workshop, Utilities, Service, Control cabinet construction |
| Head height 1 [mm] | 62 mm |
| Drive square inch | 1/2" |
| Drive connector square [metric] | 12.5 mm |
| Range of application | Assembly, Production, Maintenance and repair |
| Return angle | 5 ° |
| Number of teeth | 72 |
| Torque (max.) [Nm] | 50 Nm |
| Drive type/drive | Reversible ratchet |
| Torque (min.) [Nm] | 10 Nm |
| Precision +/- | +/- 4 % |
| Tightening direction | Right |
| Torque range (min./max.) [Nm] | 10 Nm - 50 Nm |
| Torque range (min./max.) [lbf·ft] | - |
| Trigger mechanism | Short path triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| vernier Nm | 0.25 Nm |
| Storage/Content | Plastic box |
| Graduation | 2.5 |
| Calibration length | 279 mm |
| Distance housing - square drive | 24 mm |
