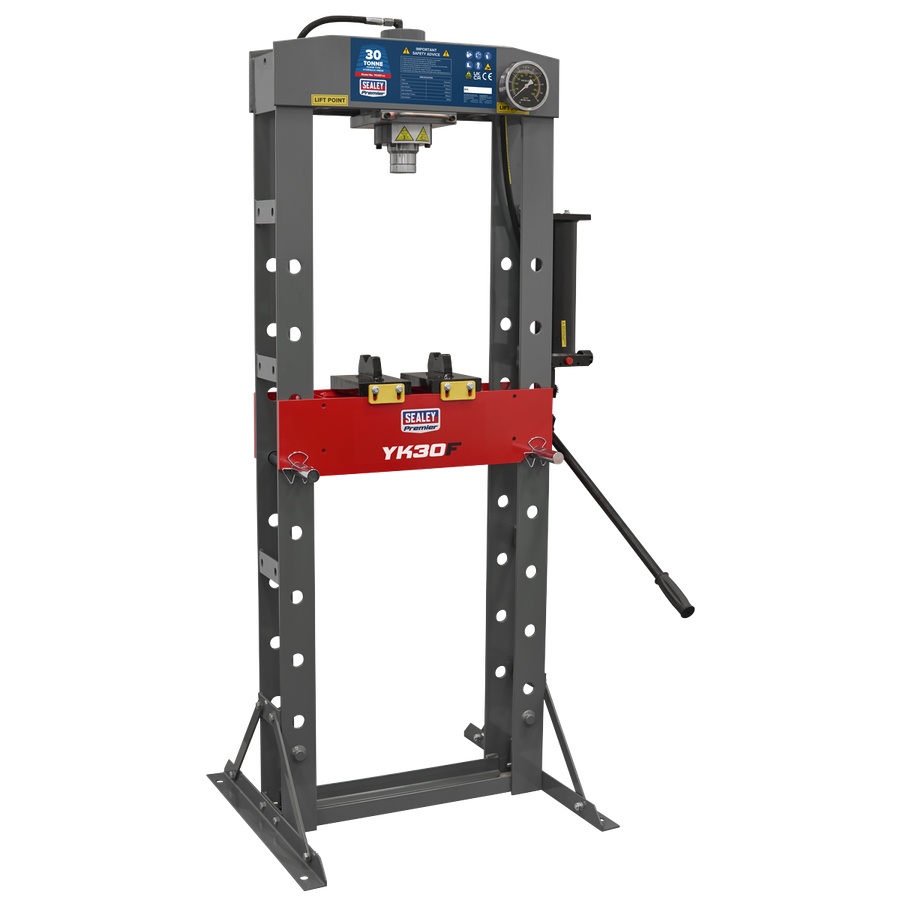

Product Overview
Steel frame construction with 2-speed hydraulic pump unit. Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
- HEAVY-DUTY - Steel frame construction with 2-speed hydraulic pump unit.
- LATERAL SLIDING ADJUSTMENT - Sliding hydraulic ram assembly gives 200mm of lateral travel for off-centre pressing applications.
- INTEGRATED GAUGE - Frame head fitted with ram pressure gauge.
- ACCESSORIES - Supplied with flat pressing plate/V-blocks.
- EXTENDED WARRANTY - 5 Year guarantee*.
- *This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specifications
| Bench or Floor Mounting | Floor |
|---|---|
| Capacity | 30 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 190mm |
| Maximum Height - Ram to Table | 1035mm |
| Minimum Height - Ram to Table | 55mm |
| Nett Weight | 130kg |
| Operating Table Width | 490mm |
| Optional Accessories | YKSG20 - Safety Guard, YKPP8 - Press Pin Set |
| Overall Height | 1775mm |
| Ram Diameter | Ø70mm |
| Ram Stroke | 150mm |
| Table Aperture | 152mm |
| Type | Hydraulic |
| Working Table Depth | 172mm |
| Working Table Width | 650mm |
Warranty Information
5 years-year guarantee (parts & labour), in addition to your statutory rights.
