Product Overview

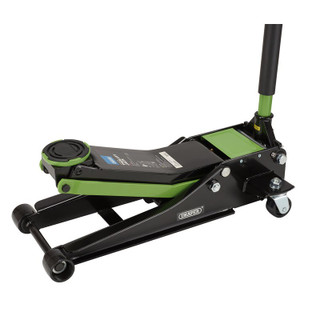

Single-piece hydraulic unit with heavy chassis design. Integral American cog-type release mechanism and long 2-piece handle. Heavy-duty castors and large saddle design ease positioning under vehicle. Fitted with safety overload valve and pump-through valve to prevent handle locking at maximum ram extension. Supplied with a pair of pin type axle stands, 3 Tonne (3000kg) capacity per stand, 6 Tonne (6000kg) per pair. Ideal for loaded vans up to 3.5 Tonne GVW.
- VERSATILE LIFTING RANGE - Minimum saddle height 130mm, maximum saddle height 520mm.
- HEAVY-DUTY CASTORS AND LARGE SADDLE DESIGN - To ease positioning under the vehicle.
- SUPPLIED WITH - Pin Type Axle Stands, 3 Tonne (3000kg) capacity per stand, (6 Tonne (6000kg) per pair).
- FITTED WITH SAFETY OVERLOAD AND PUMP-THROUGH VALVE - Preventing the handle locking at maximum ram extension.
Technical Specifications
| Minimum Saddle Height | 130mm |
|---|---|
| Capacity | Jack - 3 Tonne, Axle Stands - 6 Tonne per Pair |
| Maximum Saddle Height | 520mm |
| Maximum Chassis Height | 172mm |
| Length | 659mm |
| Weight | 34.5kg Axle Stands 6.8kg |
| Consumable Parts | JP19 - Rubber Jack Pad |
| Minimum Working Height | 290mm |
| Maximum Working Height | 435mm |
| Nett Weight | 40kg |
Warranty Information
Backed by our 1-year guarantee, in addition to your statutory rights. Guarantee excludes general wear, tear and misuse. See full guarantee terms for details.
