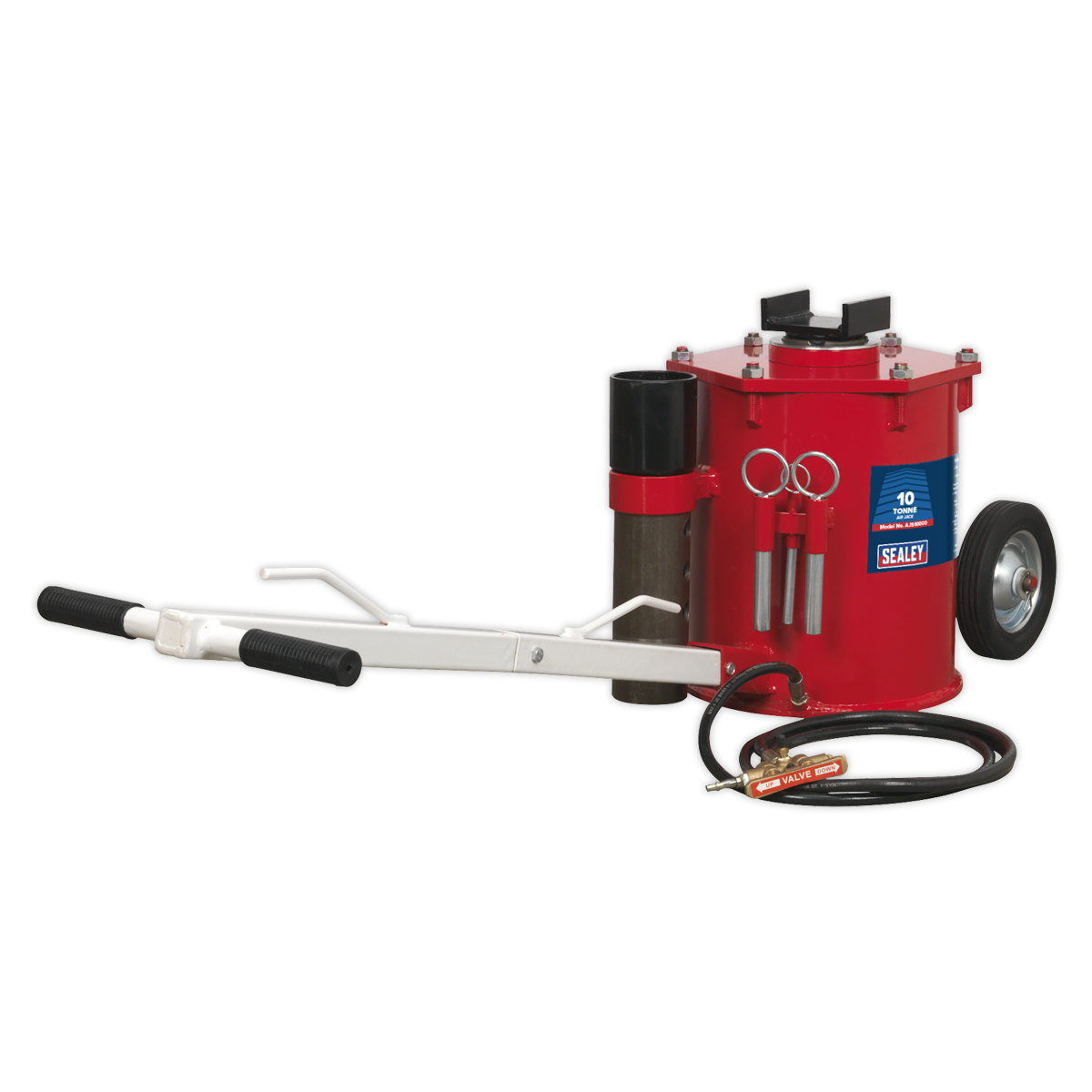

Product Overview
Ideal for heavy plant, tractors and commercial vehicles. Multiple lifting and locking positions achieved using extension tube with multi-position pin support. Removable 2-piece handle aids easy storage. Requires 200psi of air pressure to reach optimum performance.
- Ideal for heavy plant, tractors and commercial vehicles.
- Multiple lifting and locking positions achieved using extension tube with multi-position pin support.
- Removable 2-piece handle aids easy storage.
- Requires 200psi of air pressure to reach optimum performance.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specifications
| Capacity | 10 Tonne |
|---|---|
| Extensions | 561mm |
| Maximum Height (inc. Extension)/Capacity | 1300mm/10tonne |
| Maximum Length | 1480mm |
| Minimum Saddle Height | 447mm |
| Nett Weight | 80kg |
| Piston Stroke | 292mm |
| Air Pressure (PSI) | 120 |
| Lifting Capacity (kg) | 6000 |
| Working Pressure | 200psi |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
