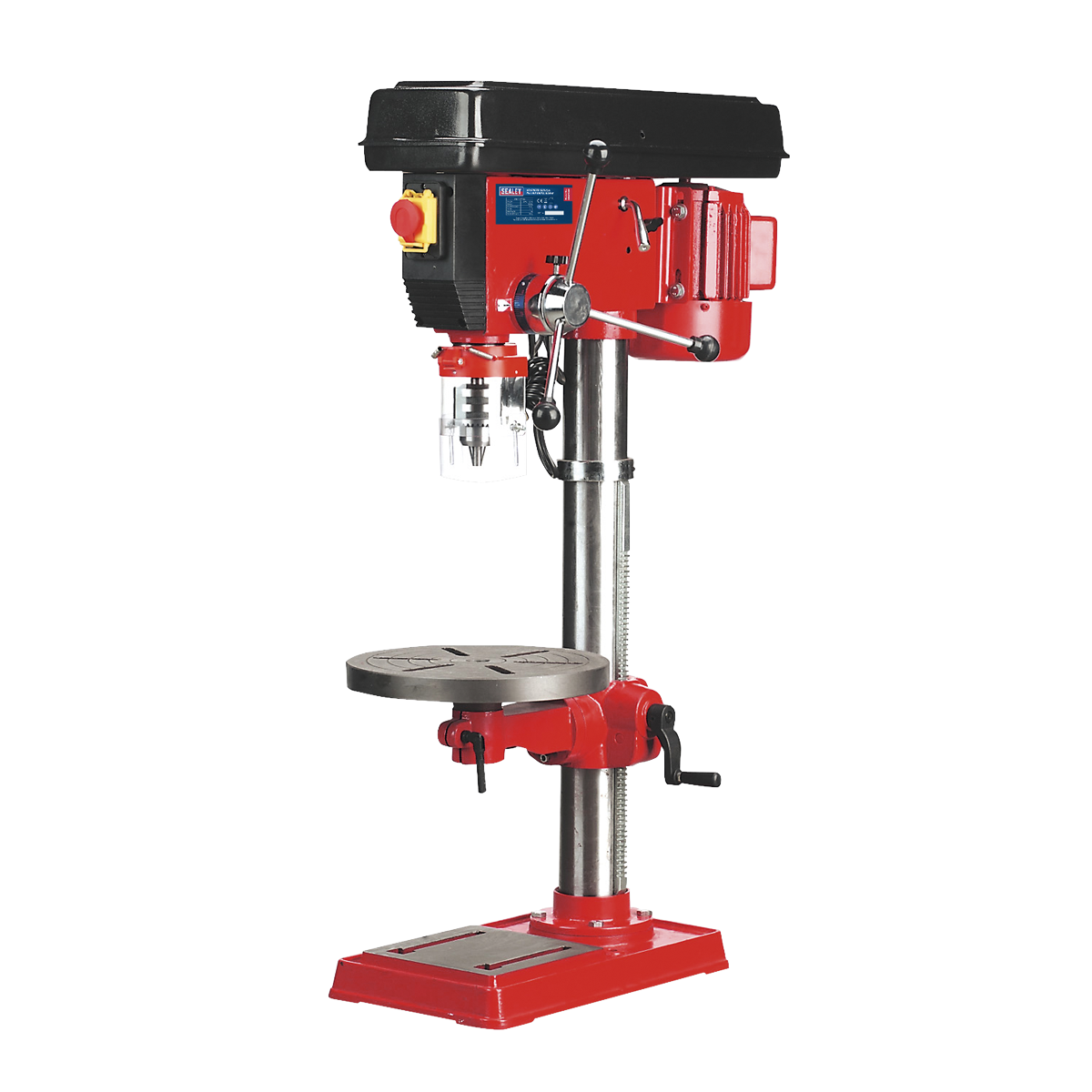

Product Overview

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
Mortise attachment available, order Model No. MA10.
16mm(5/8") Capacity chuck No. 2MT.
Height: 1070mm.
Spindle Centre to Column: 178mm.
Motor Power: 450W, Input Power: 650W.
Column Diameter: 80mm.
Spindle Travel: 80mm.
Weight: 60kg.

Technical Specifications

Base Size	460 x 275mm
Collar Diameter	60mm
Column Diameter	80mm
Drilling Capacity (Chuck Size)	16mm
Maximum Distance Spindle to Base	670mm
Maximum Distance Spindle to Table	480mm
Motor Power (Start)	450W(650W)
Nett Weight	60kg
Number of Speeds	16
Optional Accessories	GDMX/KC - Keyless Pillar Drill Chuck 16mm
Overall Height	1070mm
Speed Range	120-3000rpm
Spindle Centre to Column	178mm
Spindle Nose Taper	MT2
Spindle Travel	80mm
Supply	230V
Swing	356mm
Working Base Surface Size	200 x 220mm
Working Table Surface Size	Ø310mm
