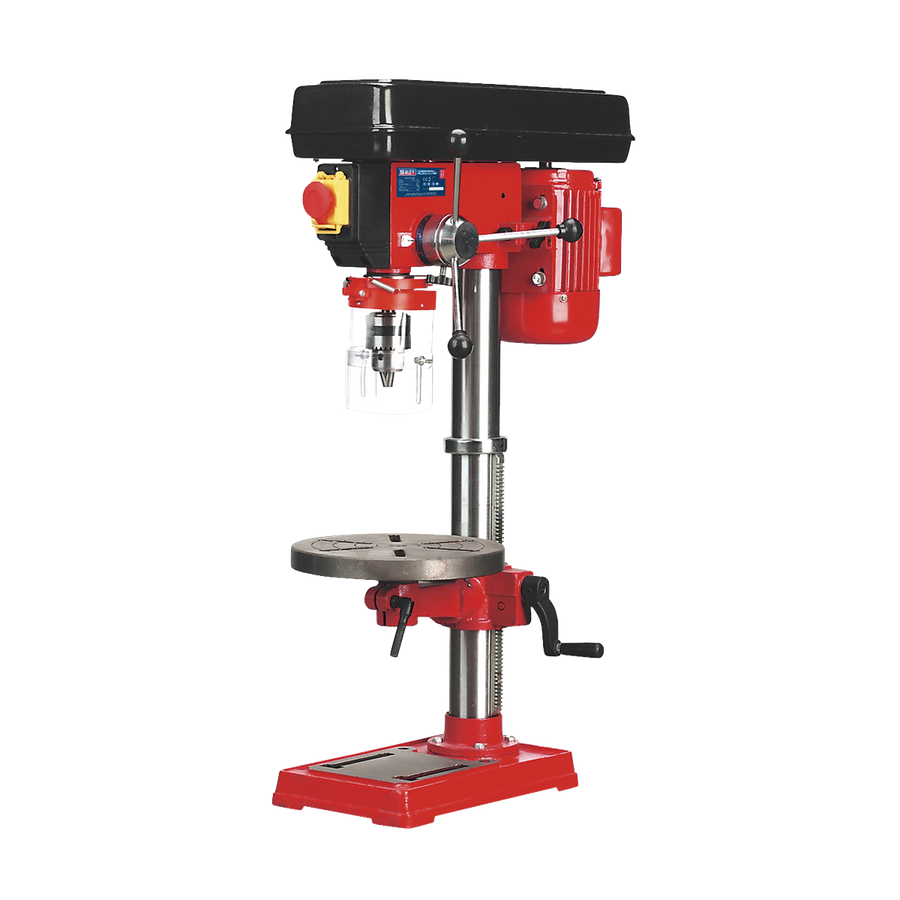

Sealey GDM92B Bench Mounting Pillar Drill 12-Speed 370W/230V
Sealey GDM92B Bench Mounting Pillar Drill 12-Speed 370W/230V
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Sealey |
|---|---|
| SKU | SEAGDM92B |
| MPN | GDM92B |
| Barcode | 5024209088800 |
| Weight | 37.00 KGS |
| Dimensions | 47.00 × 31.00 × 76.00 cm (W × H × D) |
| Warranty | 1 year-year guarantee (parts & labour), in addition to your statutory rights. |
Description
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
- One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
- Safety devices fitted include a no-load voltage release switch, allowing insurance company approval for use in educational establishments.
- All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
- All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- Mortise attachment available, order Model No. MA10.
- 16mm(5/8") Capacity chuck, MT2.
- Height: 840mm.
- Spindle Centre to Column: 127mm.
- Motor Power: 220W, Input Power: 370W.
- Column Diameter: 60mm.
- Spindle Travel: 60mm.
- Weight: 32kg.
Specifications
| Base Size | 345 x 215mm |
|---|---|
| Collar Diameter | Ø60mm |
| Column Diameter | Ø60mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 540mm |
| Maximum Distance Spindle to Table | 390mm |
| Motor Power (Start) | 220W(370W) |
| Nett Weight | 32kg |
| Number of Speeds | 12 |
| Optional Accessories | GDMX/KC - Keyless Chuck 16mm: |
| Overall Height | 840mm |
| Speed Range | 210-2580rpm |
| Spindle Centre to Column | 127mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 60mm |
| Supply | 230V |
| Swing | 254mm |
| Working Base Surface Size | 160 x 180mm |
| Working Table Surface Size | Ø248mm |
