Product Overview

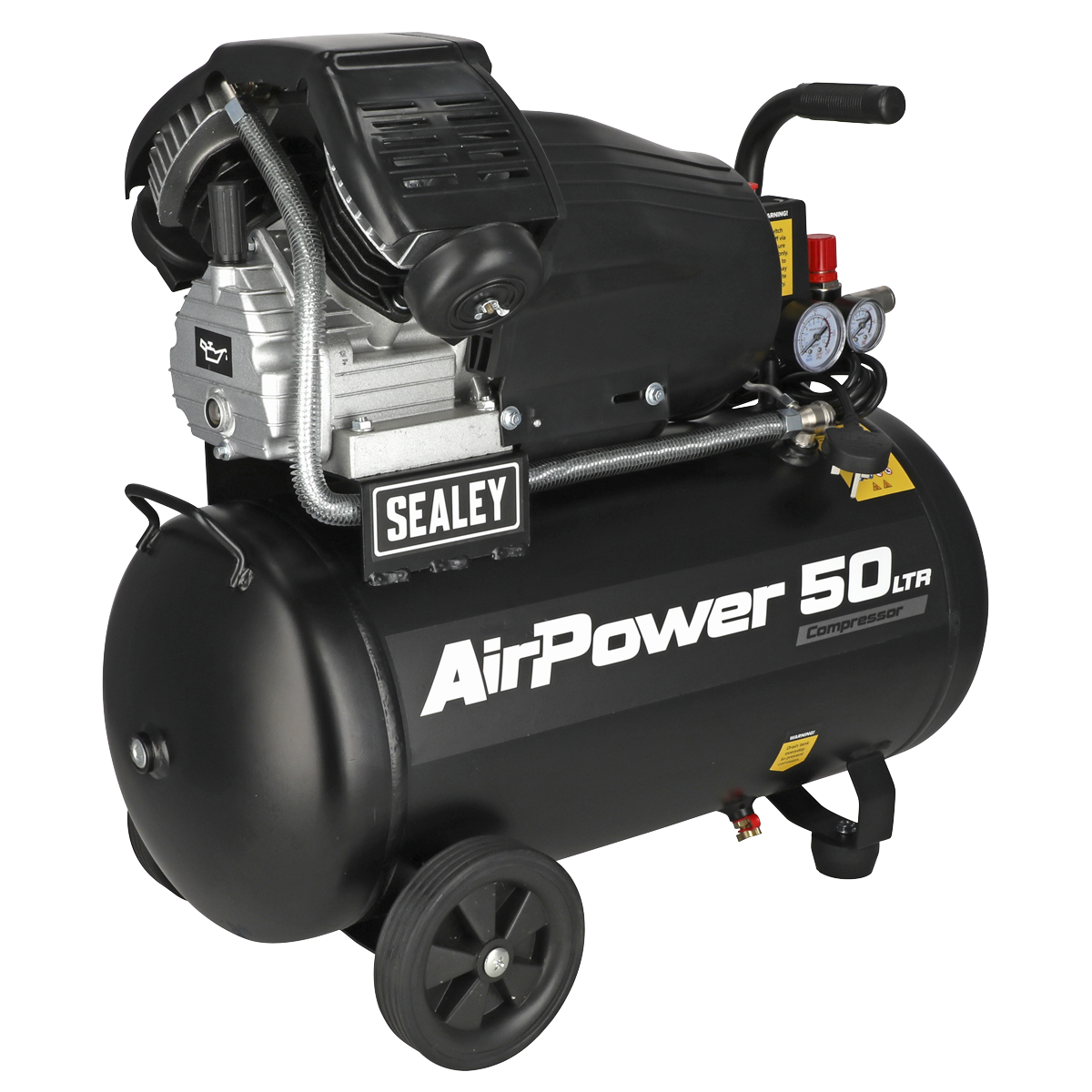

V-Twin pump aluminium cylinder head with cast iron cylinder gives added resistance to wear. Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation. Suitable for general-purpose workshop applications. Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures. Fitted with 3-pin plug.
- ALUMINIUM CONSTRUCTION - V-Twin pump with aluminium cylinder head with cast iron cylinder gives added resistance to wear.
- AUTOMATIC CUT-OUT- Fitted with fully automatic pressure cut-out switch and twin gauges displaying tank and working pressures.
- RELIABLE AND QUIET - Pump head directly coupled to heavy-duty induction motor for reliable and quiet operation.
- HIGH QUALITY TANK - Precision welded receiver tank manufactured to meet Pressure Vessel Directive.
- PERFECT FOR WORKSHOPS - Suitable for all general-purpose workshop applications.
Technical Specifications
| Air Displacement cfm(L/min) | 12.4cfm(350L/min) |
|---|---|
| Maximum Free Air Delivery cfm(L/min) | 7cfm(198L/min) |
| Maximum Pressure | 116psi(8bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3hp |
| Nett Weight | 38.8kg |
| Noise Level | 97dB |
| Oil Capacity | 350ml |
| Outlet | Quick Release Coupling |
| Phase | 1ph |
| Receiver Capacity | 50L |
| Size (W x D x H) | 705 x 335 x 610mm |
| Supply | 230V/13A |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
