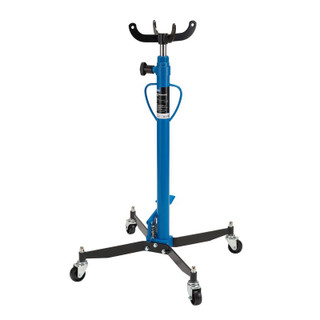

Product Overview
Twin axis saddle adjustors allow the gearbox support to be angled in any direction. 2-Stage telescopic piston for reduced clearance lifts. Hardened chrome plated piston rod. Foot pedal operation for hands-free operation. Spring loaded dead man's safety release control reduces the risk of inadvertent lowering. Four heavy duty castors, with non-marking nylon wheels, on a sturdy base, for easy manoeuvrability.
- TWIN AXIS SADDLE ADJUSTORS - The gearbox support can be angled in any direction.
- TELESCOPIC PISTON - 2-Stage model for reduced clearance lifts.
- HARD CHROME - Hardened chrome plated piston rod.
- HANDS-FREE - Foot pedal operation for hands-free operation.
- DEAD MAN'S RELEASE CONTROL - Spring loaded dead man's safety release control, reduces the risk of inadvertent lowering.
- HEAVY DUTY CASTORS - Four heavy duty castors, non-marking nylon wheels, on a sturdy base, for easy manoeuvrability.
Technical Specifications
| Base Size | 600 x 600mm |
|---|---|
| Capacity | 1000kg |
| Fixed/Adjustable Saddle | Adjustable |
| Maximum Saddle Height | 1930mm |
| Minimum Saddle Height | 910mm |
| Nett Weight | 58kg |
| Ram Extensions | 2 |
| Saddle Tilt - Backward | 10° |
| Saddle Tilt - Forward | 10° |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
