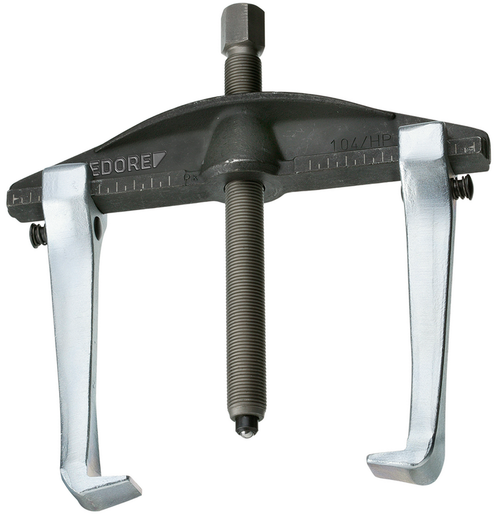

Product Overview
- Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
- Strong drop forged pattern
- Puller hook forged from one piece
- The legs clamp automatically when under tension
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Exchangeable spindle tip (ball or tip)
- Spindle thermo-chemically hardened
- Can be retrofitted with hydraulic spindle
Technical Specifications
| Usable clamping reach [mm] | 200 mm |
|---|---|
| Spindle thread size | G3/4x280mm |
| Clamping width a2 (min.) internal pulling [mm] | 150 mm |
| Clamping width a2 (max.) internal pulling [mm] | 420 mm |
| Width of hooked foot [mm] | 36 mm |
| Usable depth of hooked foot d2 [mm] | 33 mm |
| Thickness of hooked foot at tip | 5.0 mm |
| Width across flats [mm] | 27 mm |
| Tractive force (max.) [t] | 7.5 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 7.7 kg |
| Hook brake available | Yes |
| Hook can be moved parallel | Yes |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 350 mm |
| Hydraulic spindle optional | 1.06/HSP2 |
| Use | For removing drive pulleys, wheels, ball bearings etc. |
| Type | 2-arm |
| Graduation | Yes |
| Number of hooks | 2 |
| Spindle Thrust piece type | Kugel & Spitze |
| Spindle Thread length (usable) [mm]. | 280 mm |
| Spindle Surface coating | Nitro-carburated |
| Spindle Width across flats | 27 mm |
| Exchangeable spindle tip | Yes |
| Spindle holder | G3/4" |
