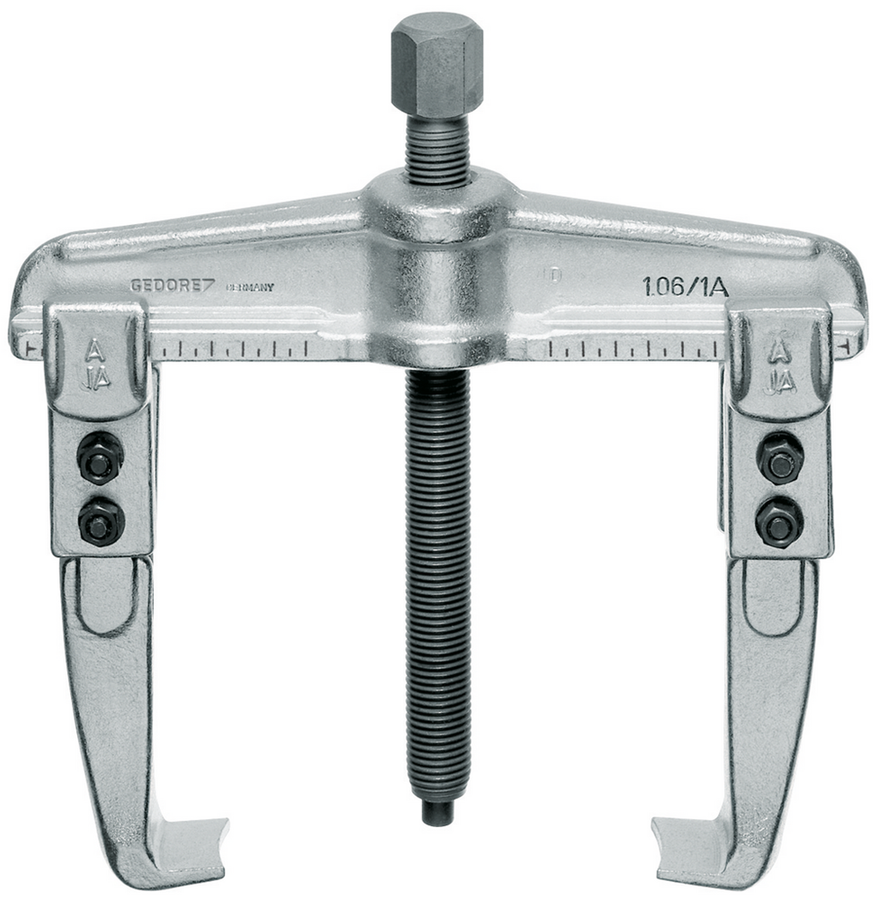

Gedore 8000230 1.06/1 Universal puller, 2-arm, 90x100 mm
Gedore 8000230 1.06/1 Universal puller, 2-arm, 90x100 mm
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Gedore |
|---|---|
| SKU | GED8000230 |
| MPN | 8000230 |
| Barcode | 4036976104165 |
| Weight | 1.10 KGS |
| Dimensions | 16.50 × 3.50 × 18.00 cm (W × H × D) |
Description
- Proven model for safe and fast removal of discs, wheels, ball bearings etc.
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Specifications
| Usable clamping reach [mm] | 100 mm |
|---|---|
| Spindle thread size | M 14x1,5 x 140 |
| Clamping width a2 (min.) internal pulling [mm] | 60 mm |
| Clamping width a2 (max.) internal pulling [mm] | 140 mm |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 12 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 3.0 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 1.1 kg |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 90 mm |
| Hydraulic spindle optional | - |
| Total length [mm] | 175 mm |
| Total width [mm] | 138 mm |
| Total height [mm] | 36 mm |
| Graduation | Yes |
