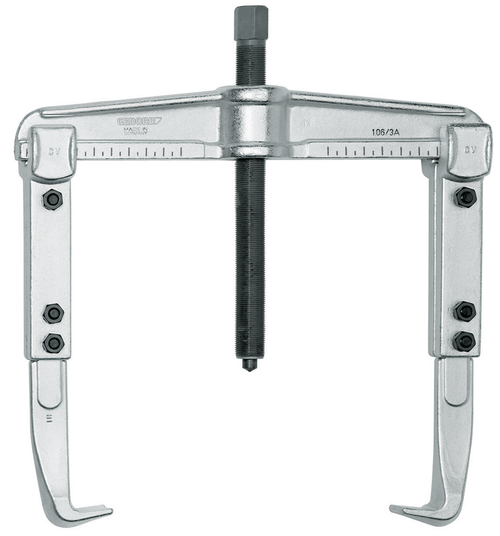

Product Overview
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Extended pulling legs
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Technical Specifications
| Usable clamping reach [mm] | 200 mm |
|---|---|
| Spindle thread size | M14x1,5x140mm |
| Clamping width a2 (min.) internal pulling [mm] | 60 mm |
| Clamping width a2 (max.) internal pulling [mm] | 140 mm |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 12 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 3 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 1.66 kg |
| Hook can be moved parallel | Yes |
| Screws included | Yes |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 90 mm |
| Hydraulic spindle optional | - |
| Total length [mm] | 270 mm |
| Total width [mm] | 135 mm |
| Total height [mm] | 35 mm |
| Use | For removing drive pulleys, wheels, ball bearings etc. |
| Type | 2-arm, with extended hooks |
| Graduation | Yes |
| Number of hooks | 2 |
| Load of the entire puller (max.) [t] | 3 t |
| Spindle Thrust piece type | Spitze |
| Spindle Thread length (usable) [mm]. | 140 mm |
| Spindle Surface coating | Nitro-carburated |
| Spindle Width across flats | 17 mm |
| Spindle holder | M14x1,5mm |
