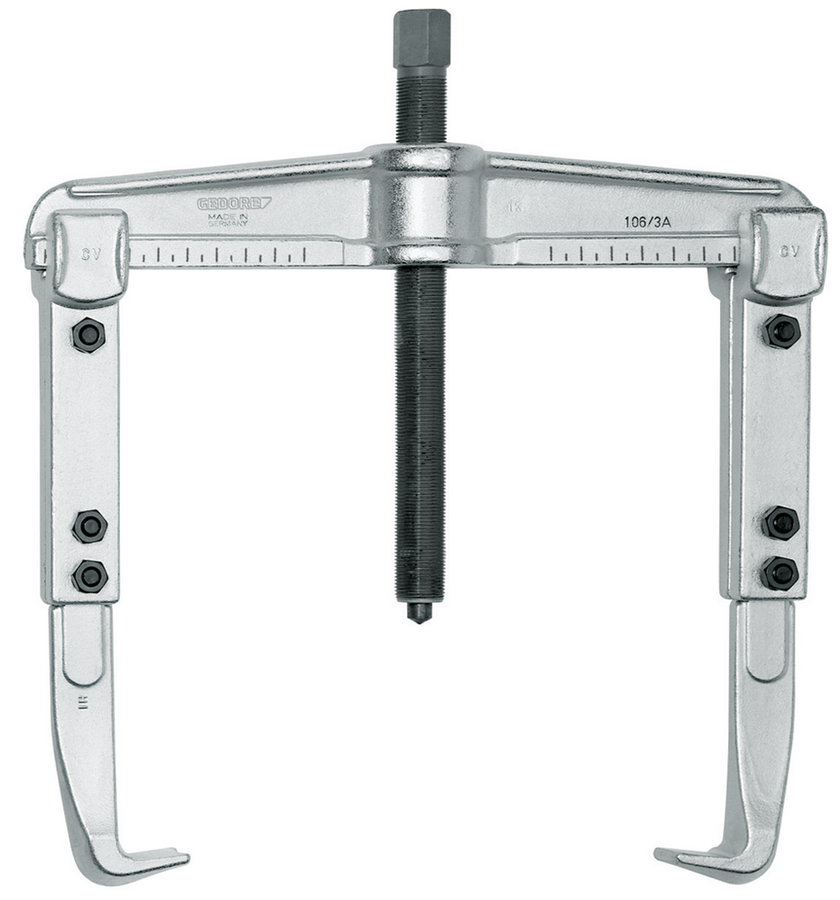

Gedore 8108510 1.06/2-3 Universal puller, 2-arm, 160x300 mm
Gedore 8108510 1.06/2-3 Universal puller, 2-arm, 160x300 mm
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Gedore |
|---|---|
| SKU | GED8108510 |
| MPN | 8108510 |
| Barcode | 4036976103427 |
| Weight | 4.40 KGS |
| Dimensions | 26.00 × 7.00 × 45.50 cm (W × H × D) |
Description
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Extended pulling legs
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Specifications
| Usable clamping reach [mm] | 300 mm |
|---|---|
| Spindle thread size | G1/2x210mm |
| Clamping width a2 (min.) internal pulling [mm] | 80 mm |
| Clamping width a2 (max.) internal pulling [mm] | 220 mm |
| Width of hooked foot [mm] | 30 mm |
| Usable depth of hooked foot d2 [mm] | 18 mm |
| Thickness of hooked foot at tip | 3.5 mm |
| Width across flats [mm] | 22 mm |
| Tractive force (max.) [t] | 5 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 4.4 kg |
| Hook can be moved parallel | Yes |
| Screws included | Yes |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 160 mm |
| Hydraulic spindle optional | 1.06/HSP1 |
| Total length [mm] | 395 mm |
| Total width [mm] | 220 mm |
| Total height [mm] | 48 mm |
| Use | For removing drive pulleys, wheels, ball bearings etc. |
| Type | 2-arm, with extended hooks |
| Graduation | Yes |
| Number of hooks | 2 |
| Load of the entire puller (max.) [t] | 5 t |
| Spindle Thrust piece type | Spitze |
| Spindle Thread length (usable) [mm]. | 210 mm |
| Spindle Surface coating | Nitro-carburated |
| Spindle Width across flats | 22 mm |
| Spindle holder | G1/2" |
