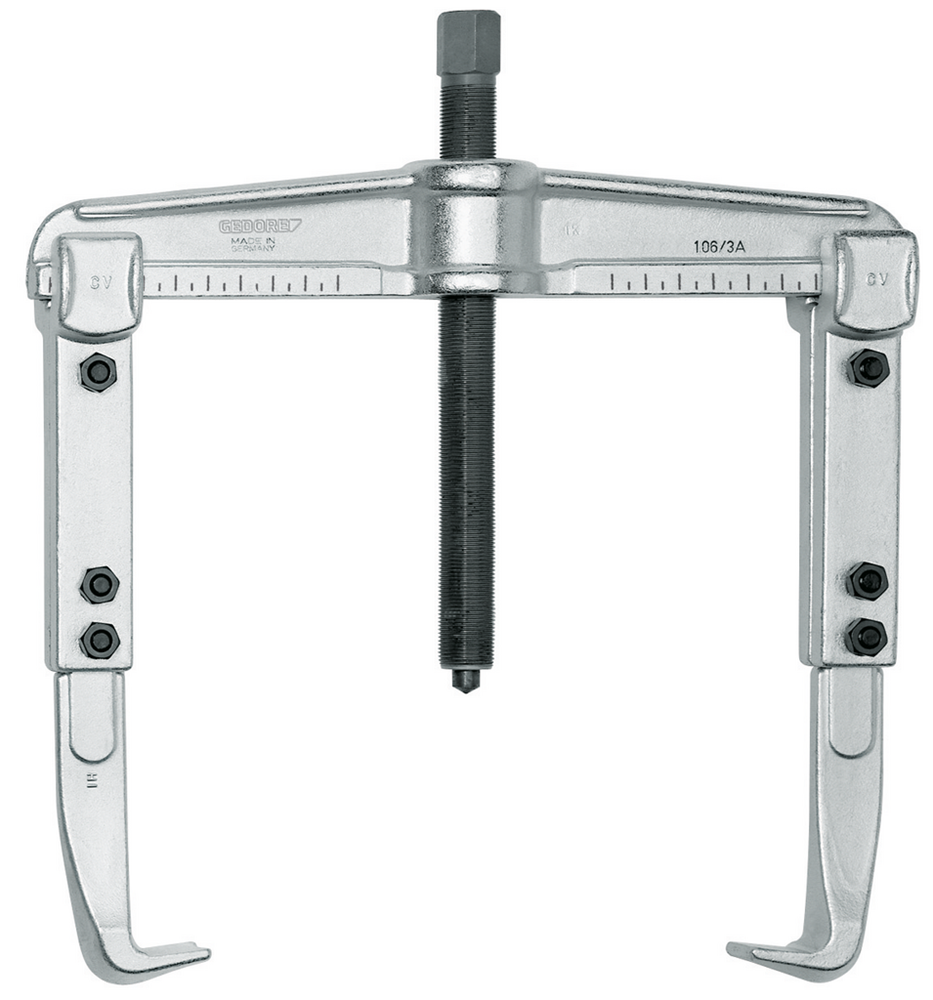

Product Overview
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
- Extended pulling legs
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Technical Specifications
| Usable clamping reach [mm] | 300 mm |
|---|---|
| Spindle thread size | G3/4x280mm |
| Clamping width a2 (min.) internal pulling [mm] | 125 mm |
| Clamping width a2 (max.) internal pulling [mm] | 330 mm |
| Width of hooked foot [mm] | 36 mm |
| Usable depth of hooked foot d2 [mm] | 28 mm |
| Thickness of hooked foot at tip | 6.5 mm |
| Width across flats [mm] | 27 mm |
| Tractive force (max.) [t] | 7.5 |
| reversible arms available | Yes |
| Number of arms | 2 |
| Net weight [kg] | 9.1 kg |
| Hook can be moved parallel | Yes |
| Screws included | Yes |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 250 mm |
| Hydraulic spindle optional | 1.06/HSP2 |
| Total length [mm] | 450 mm |
| Total width [mm] | 330 mm |
| Total height [mm] | 65 mm |
| Use | For removing drive pulleys, wheels, ball bearings etc. |
| Type | 2-arm, with extended hooks |
| Graduation | Yes |
| Number of hooks | 2 |
| Load of the entire puller (max.) [t] | 7.5 t |
| Spindle Thrust piece type | Spitze |
| Spindle Thread length (usable) [mm]. | 280 mm |
| Spindle Surface coating | Nitro-carburated |
| Spindle Width across flats | 27 mm |
| Spindle holder | G3/4" |
