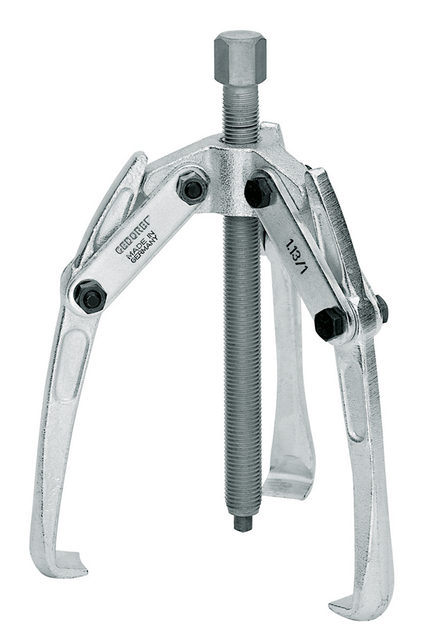

Product Overview
- Handy robust model for the removal of pulleys, wheels, ball bearings, etc.
- Inexpensive economy model
- The legs grip automatically
Technical Specifications
| Usable clamping reach [mm] | 80 mm |
|---|---|
| Spindle thread size | M 12x1,5 x 110 |
| Width of hooked foot [mm] | 14 mm |
| Usable depth of hooked foot d2 [mm] | 8 mm |
| Thickness of hooked foot at tip | 2.0 mm |
| Width across flats [mm] | 14 mm |
| Tractive force (max.) [t] | 2 |
| Number of arms | 3 |
| Net weight [kg] | 0.5 kg |
| Can be retrofitted with hydraulic spindle | No |
| automatic pressing | Yes |
| Clamping width (max.) external pulling [mm] | 70 mm |
| Hydraulic spindle optional | - |
