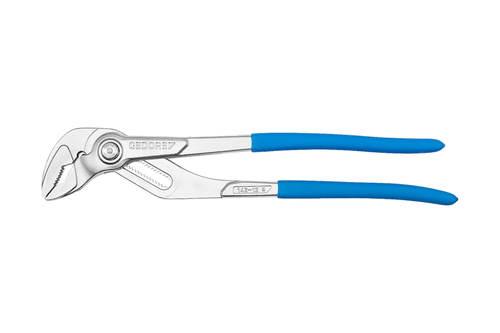

Product Overview
- Fine adjustment by push button
- No. 142 12 = 17-way adjustable
- Push-button one-hand adjustment with large actuating surface
- Small pliers head for hard-to-access areas
- Long pliers jaws
- Offset gripping surfaces, self-clamping on nuts and tubes
- Induction-rehardened serrated faces
Technical Specifications
| Net weight [kg] | 0.56 kg |
|---|---|
| Total length [mm] | 310 mm |
| Total width [mm] | 57 mm |
| Total height [mm] | 21 mm |
| Material | Chrome-vanadium steel |
| Width of head 1 [mm] | 55.0 mm |
| Clamping width [mm] | 44 mm |
| Standard | DIN ISO 8976 - Form C |
| Total length [inch] | 12 |
| Handle design | dip-insulated |
| Handle colour | blue |
| Clamping width [inch] | 1 3/4" |
| Number of setting positions | 17 |
| Design non-sparking | No |
| Jaw length L3 [mm] | 43 mm |
| Joint types | push-through joint |
| Head thickness [mm] T1 | 8.5 mm |
| Size [Inch] | 12 |
| Jaw shape [mm] | flat jaws |
| Width of centres W4 [mm] | 8.5 mm |
| Hardening process | Induction hardened |
