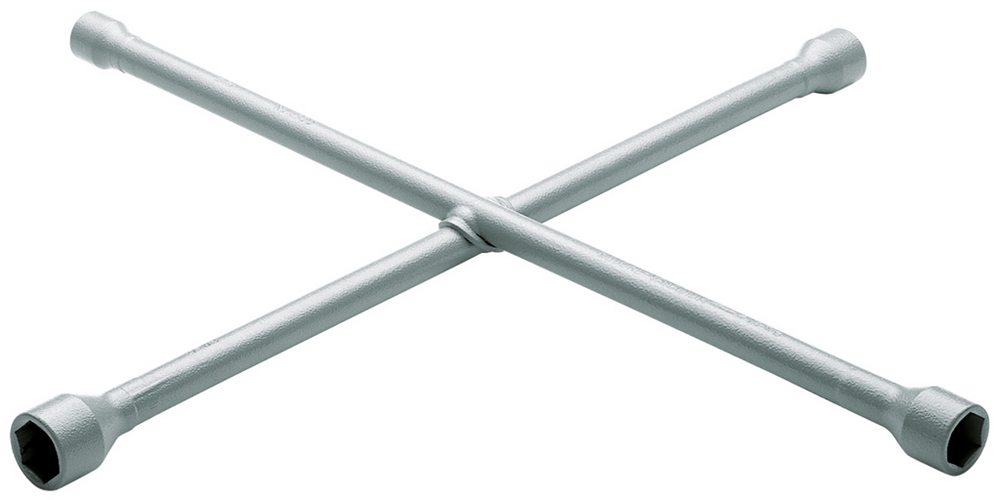

Product Overview
- Hot forged hexagon
- The collar, typical of GEDORE 4-way wheel wrenches, enlarges the welding area
- The positive-fit joint remains solid even under extreme loading
- Dimensions: 600 x 600 mm
Technical Specifications
| Net weight [kg] | 3.155 kg |
|---|---|
| Total length [mm] | 65 mm |
| Total width [mm] | 62 mm |
| Total height [mm] | 39 mm |
| Use | For delivery vans and light trucks, buses and tractors |
| Material | Chrome-vanadium steel 31CrV3 |
| Parts list (Text) | 19x24x22x27 (3/4x15/16x7/8x1.1/16") |
| Surface | powder-coated |
| Width across flats 1 [mm] | 19 |
| Width across flats 2 [mm] | 24 |
| Width across flats [mm] | 19 x 24 x 22 mm x 27 |
| Colour | grey |
| Width across flats 1 [AF] | 3/4" |
| Width across flats 2 [AF] | 15/16" |
| Insert-Ø 1 | 28.5 mm |
| Insert-Ø 2 | 32.0 mm |
| Width Across Flat 3 [mm] | 22 mm |
| Width Across Flat 4 [mm] | 27 |
| Insert-Ø 3 | 34.5 mm |
| Insert-Ø 4 | 38.5 mm |
| Insert-Ø | 28.5 mm x 32,0 mm x 34,5 mm x 38,5 mm |
| Width across flats 3 [AF] | 7/8" |
| Width across flats 4 [AF] | (1.1/16") |
