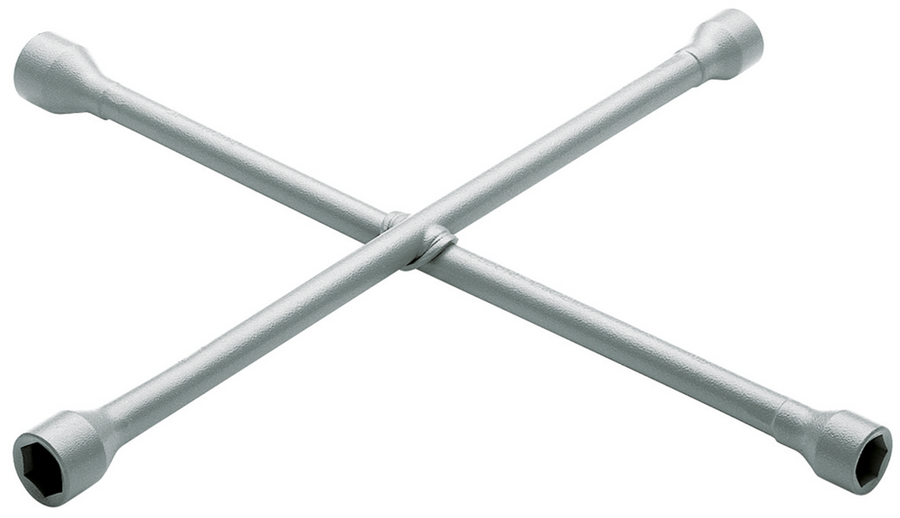

Product Overview
- With protective central reinforcement (DBGM = German utility patent)
- Hot forged hexagon
- The collar, typical of GEDORE 4-way wheel wrenches, enlarges the welding area
- The positive-fit joint remains solid even under extreme loading
Technical Specifications
| Net weight [kg] | 1.285 kg |
|---|---|
| Total length [mm] | 422 mm |
| Total width [mm] | 420 mm |
| Total height [mm] | 31 mm |
| Use | For car wheel nuts in metric and inch sizes |
| Material | Chrome-vanadium steel 31CrV3 |
| Parts list (Text) | 17x19 (3/4")x21x11/16" |
| Surface | powder-coated |
| Width across flats 1 [mm] | 17 |
| Width across flats 2 [mm] | 19 |
| Width across flats [mm] | 17 x 19 x 21 mm x 11/16" |
| Colour | grey |
| Width across flats 2 [AF] | 3/4" |
| Insert-Ø 1 | 26.0 mm |
| Insert-Ø 2 | 28.5 mm |
| Width Across Flat 3 [mm] | 21 mm |
| Width Across Flat 4 [mm] | 11/16" |
| Insert-Ø 3 | 30.5 mm |
| Insert-Ø 4 | 26.0 mm |
| Insert-Ø | 26.0 mm x 28,5 mm x 30,5 mm x 26,0 mm |
