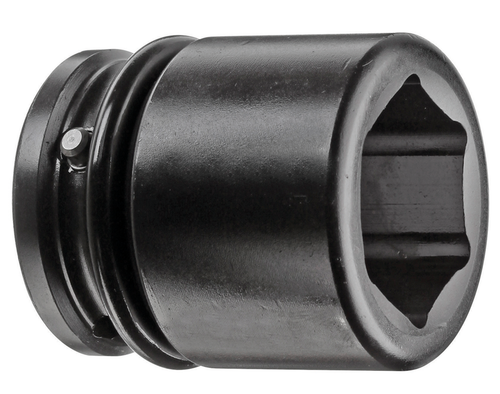

Product Overview
- Manually operated, with non-slip cross knurling
- Vanadium steel 31CrV3, matt chromium-plated
Technical Specifications
| Net weight [kg] | 0.271 kg |
|---|---|
| Total length [mm] | 55 mm |
| Total width [mm] | 40 mm |
| Total height [mm] | 40 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | matte chrome-plated |
| Width across flats 1 [mm] | 27 |
| Standard | DIN 3124, ISO 2725-1, DIN 3120 - D 20, ISO 1174 |
| Drive mount, square [metric] | 20.0 mm |
| Drive connector square [inch] | 3/4" |
| Backup | Locking pin |
| Working length | 54.5 mm |
| Insert-Ø 1 | 39.6 mm |
| Insert-Ø 2 | 36.0 mm |
| Operating depth | 24.0 mm |
